Nested Gasket Squares

Nested Gasket Squares

$9.00 USD
$9.00 USD $9.00 USD
Sale Sold out
Shipping calculated at checkout.

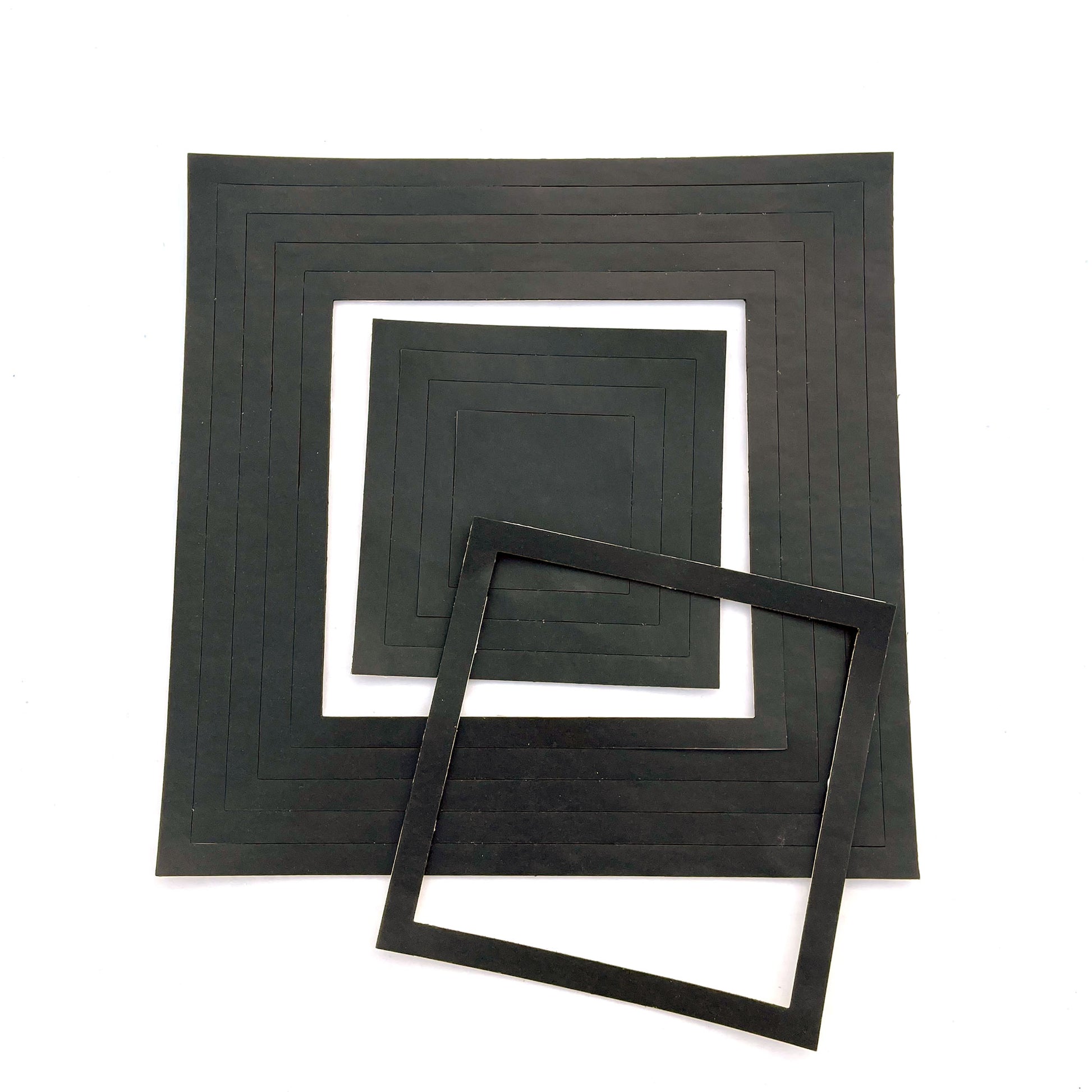

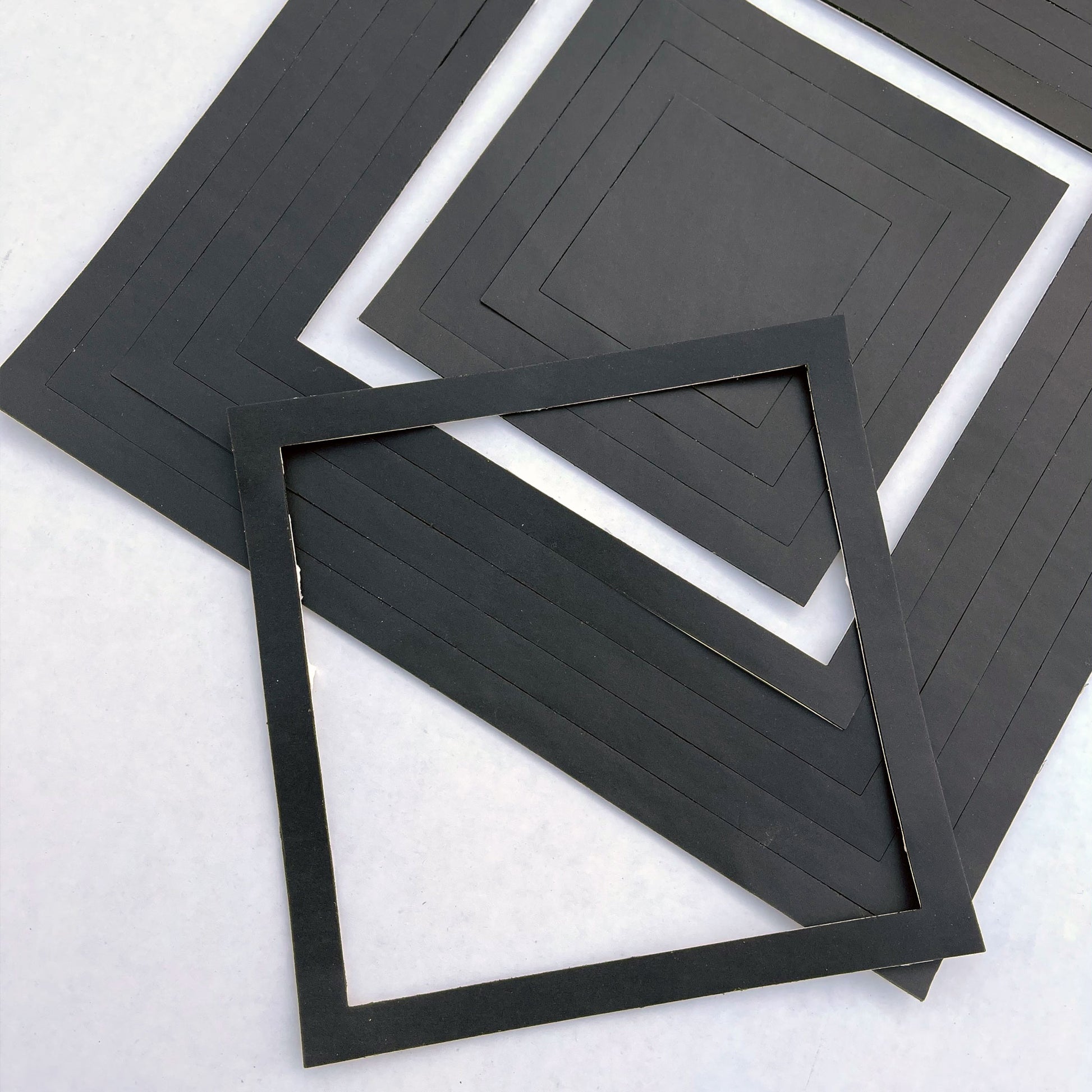

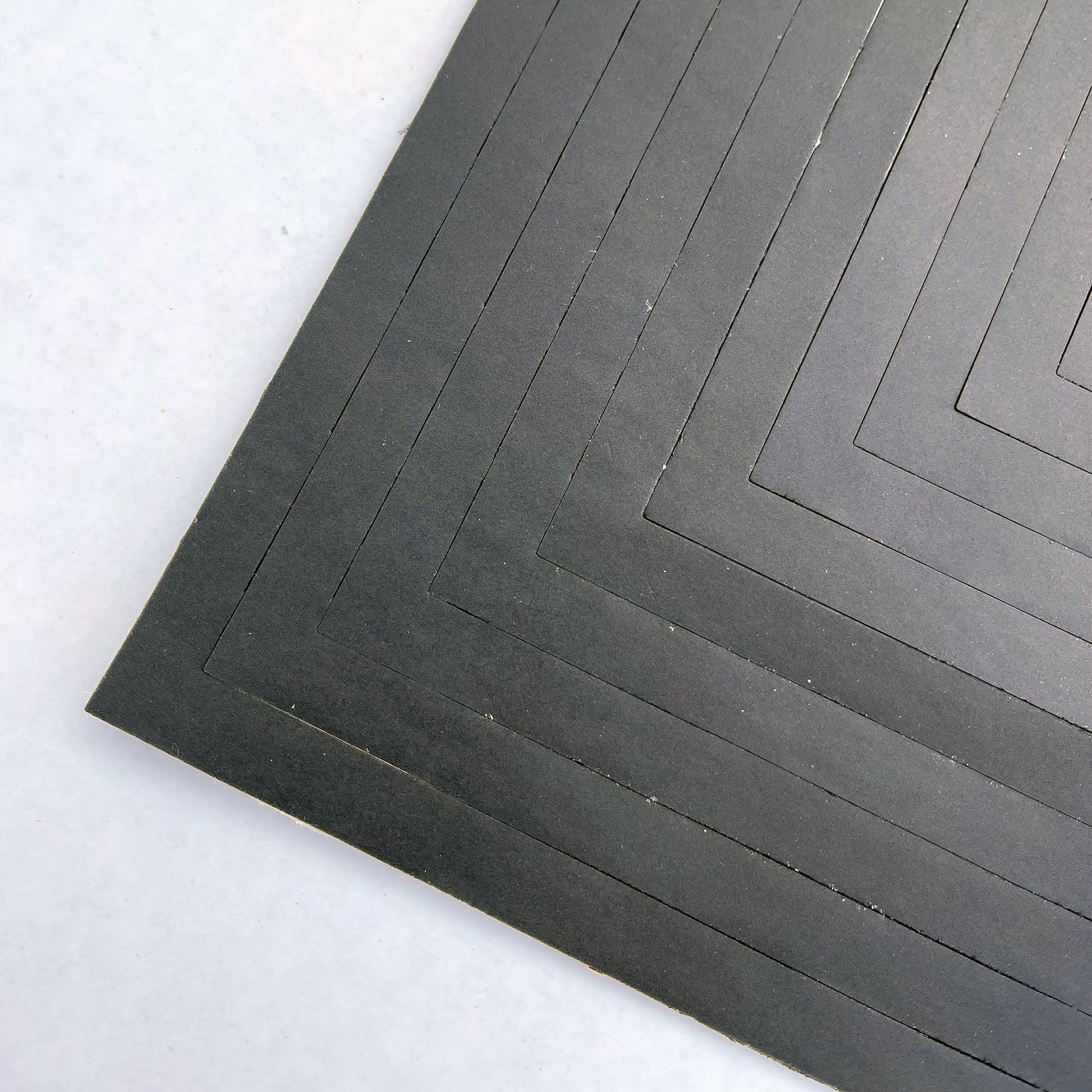

These convenient pre-cut squares offer a quick, easy, ready to use gasket. Simply peel and stick the gasket of your choice onto your fixture plate or spoilboard, and you are ready to hold your part.

The nested pack offers multiple sizes in one efficient package, and the solid square shaped gasket perimeter has the advantage of ensuring there are no gaps or leaks around the edges. You can use them for quick one-offs and peel after use, or multiple squares can be placed onto one fixture plate to create a custom re-useable multi-zone workholding fixture.

Use these with our fixture plate for the highest available holding power. True vacuum clamping achieves stronger holding power than a "downdraft" approach, where there is leakage through the spoil-board.


Nested Square Gasket Specifications:

  • Sheet Thickness (1/16") Thickness
  • Adhesive backed (one side)
  • Total Sheet Size: 12" x 12"
  • Square Sizes: 12", 11", 10", 9", 8", 7", 6", 5", 4"
View full details

Universal Mounting

Transform Your CNC Table

The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatably using the included locating pins.

Refine your workflow

Save Time & Money

The AirWeights system gains the user several efficiencies.

  • Saves time: You can secure multiple parts quickly
  • Cut down on material waste: No need to leave room on stock for screws or clamps.
  • Maximize table space: less clamps = more workspace
  • Repeatability: Refine your workflow and make your process more efficient
  • Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold


Using What's Already There

The Weight of Air

It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.

All you have to do to unlock that weight, is create an area of low pressure below a mass, which AirWeights achieves in a compact, efficient, and affordable formfactor.

The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

AirWeights Features:

  1. Touch Plate Locating Port
  2. Quick Disconnect Fittings
  3. Locating Pin Holes (4)
  4. Pre-installed Perimeter Gasket
  5. Mounting Holes and Slots (12)
  6. Vacuum Ports (9)
  7. 1" Grid Pattern (customizable gasket layout)
