AirWeights

Adhesive Gasket

Adhesive Gasket

Regular price $29.00 USD
Regular price Sale price $29.00 USD
Sale Sold out

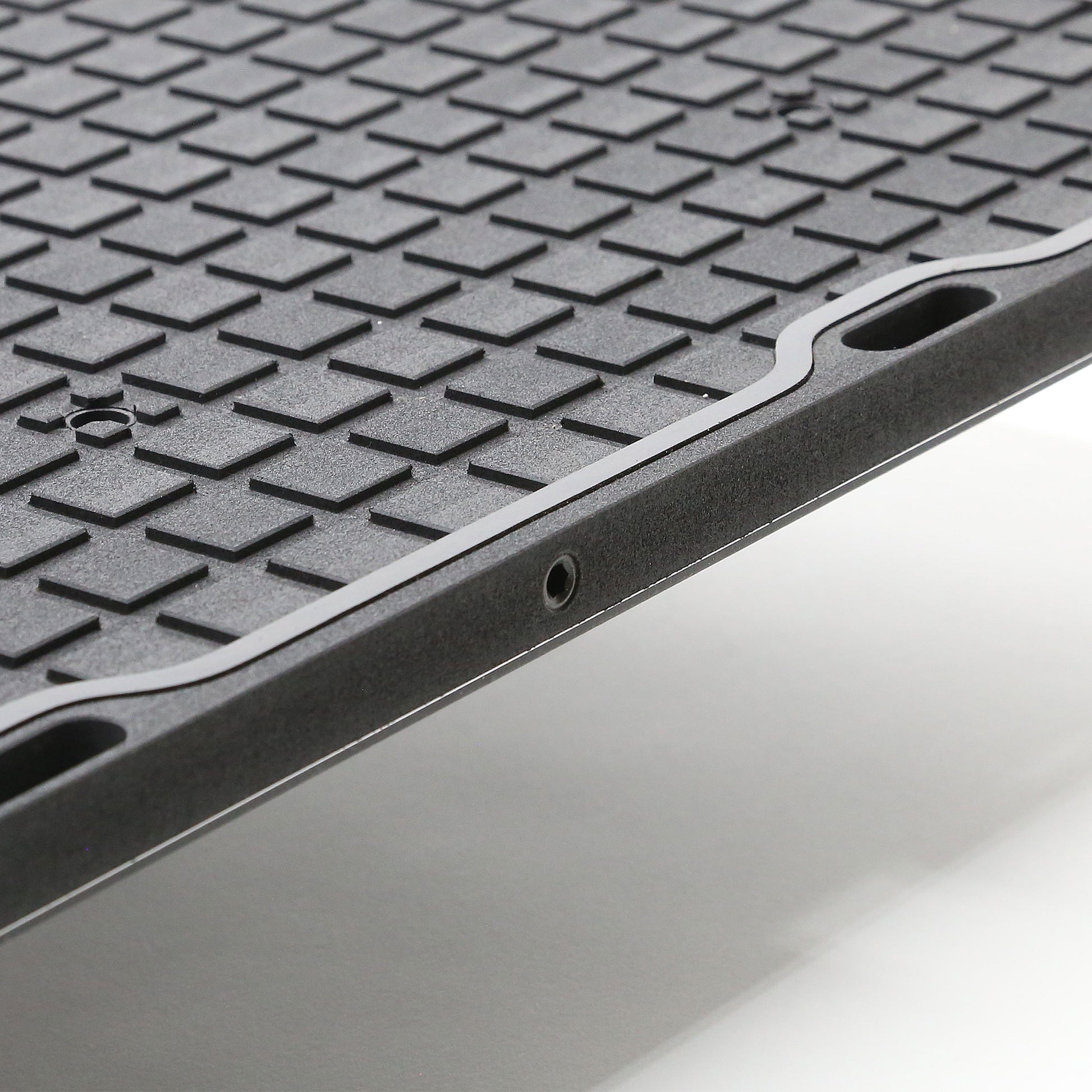

This is the adhesive-backed version of Grid Gasket. This is used on the outer-most perimeter of the AirWeights table with all fixture plate solutions, and can be used to create a gasket that is intended to be left in place, due to the adhesive backing on one side.

Adhesive gasket is used to quickly create a customized gasket configuration directly on the AirWeights vacuum table, or directly onto a fixture plate

Simply create a perimeter that sits inside the intended cut area, surrounding one or more vacuum ports with any custom gasket shape. You can achieve any shape, and create multiple independent vacuum zones for multiple parts.

You can create a permanent re-useable work-holding pallet by installing adhesive gasket directly onto a fixture plate. When placing a gasket on a fixture plate, you can cut all the way through the part, eliminating the need for tabs or onion skins, and leaving you with a fully finished part. Recommended for repeated setups.

You can install adhesive gasket directly into the AirWeights grid, however, with this method you do not want to cut below the bottom surface of your part since the table is directly below the workpiece. Set your Z height to leave a thin “onion skin” of material that can be easily broken off later to free your part from the material itself. Onion skin recommended thickness: .050”

This gasket fits perfectly into the 1/4" AirWeights grid, and it stays securely in place thanks to the adhesive on one side of the foam.

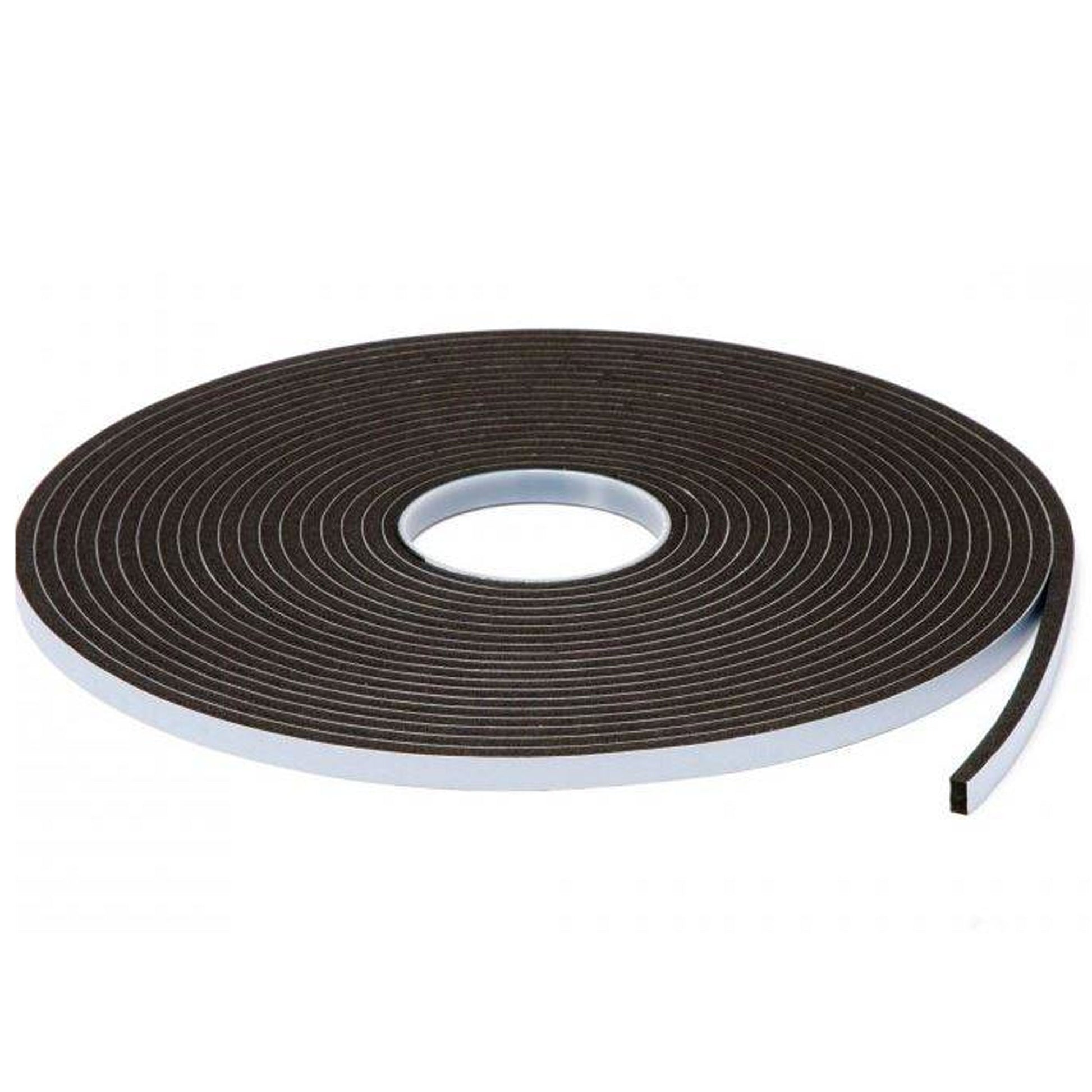

  • Full Roll Length 82' (sold by the roll)

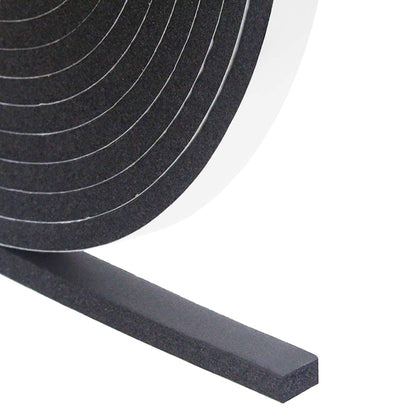

  • 1/8”thickness  x 1/4” width
  • Adhesive Backed (One Side)
View full details

Universal Mounting

Transform Your CNC Table

The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatably using the included locating pins.

Refine your workflow

Save Time & Money

The AirWeights system gains the user several efficiencies.

  • Saves time: You can secure multiple parts quickly
  • Cut down on material waste: No need to leave room on stock for screws or clamps.
  • Maximize table space: less clamps = more workspace
  • Repeatability: Refine your workflow and make your process more efficient
  • Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold


Using What's Already There

The Weight of Air

It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.

All you have to do to unlock that weight, is create an area of low pressure below a mass, which AirWeights achieves in a compact, efficient, and affordable formfactor.

The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

AirWeights Features:

  1. Touch Plate Locating Port
  2. Quick Disconnect Fittings
  3. Locating Pin Holes (4)
  4. Pre-installed Perimeter Gasket
  5. Mounting Holes and Slots (12)
  6. Vacuum Ports (9)
  7. 1" Grid Pattern (customizable gasket layout)
