AirWeights MFT Vacuum Clamp

AirWeights MFT Vacuum Clamp

$79.00 USD
$89.00 USD $79.00 USD
Sale Sold out
Shipping calculated at checkout.

Attention: Please expect 1-2 weeks lead time for all new orders.

AirWeights MFT Vacuum Clamp

NOTICE: This item is available for pre-order only. Please allow 6-8 weeks for delivery.

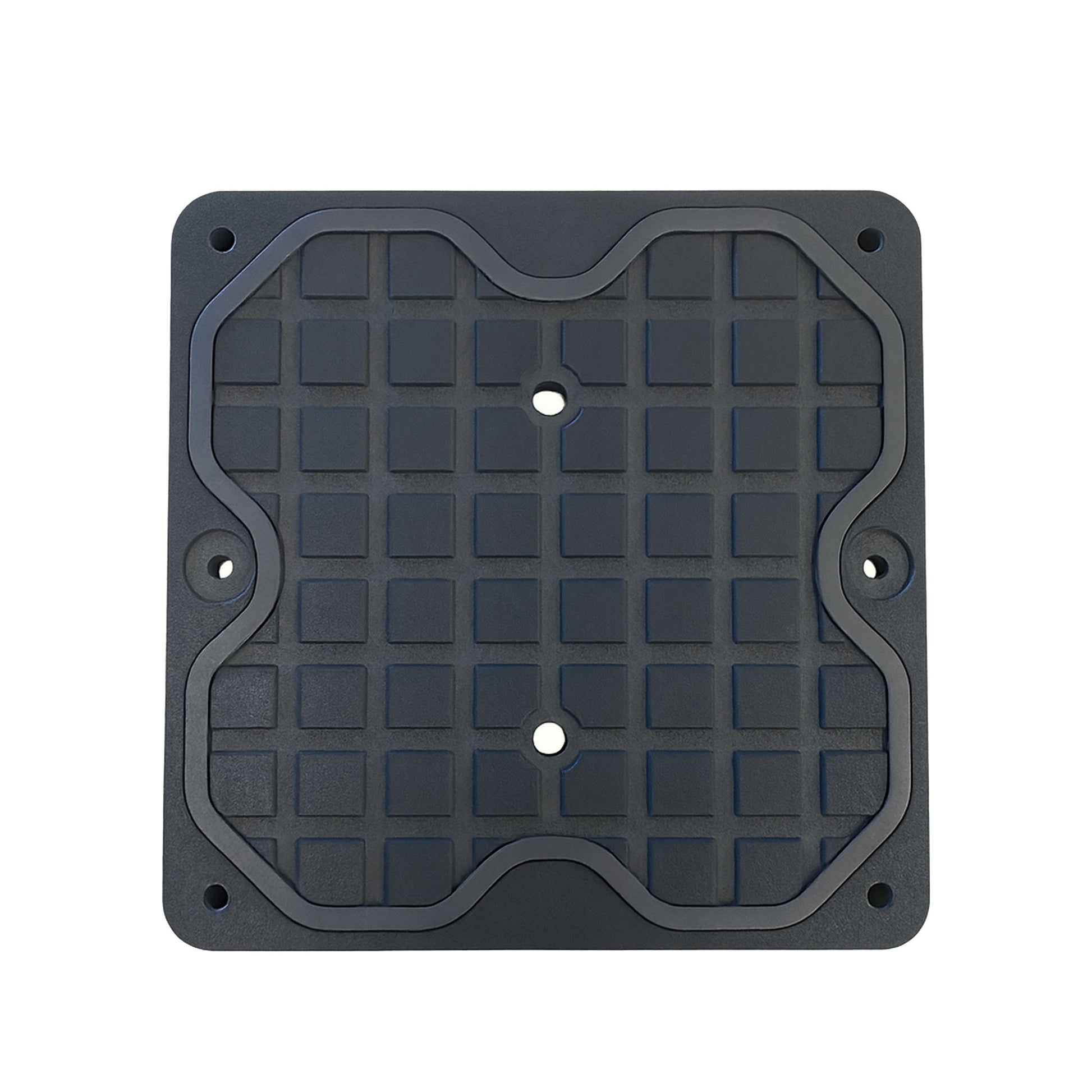

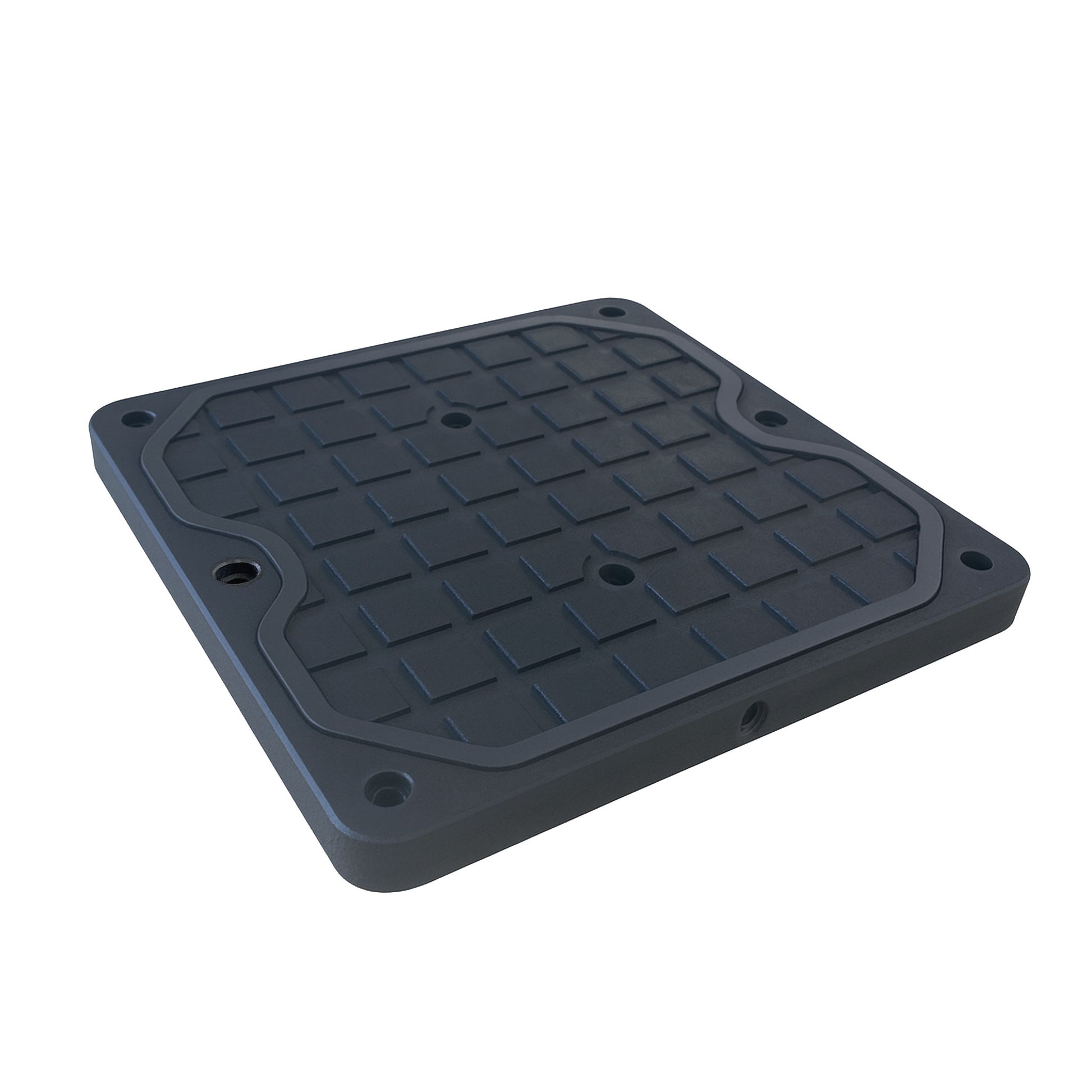

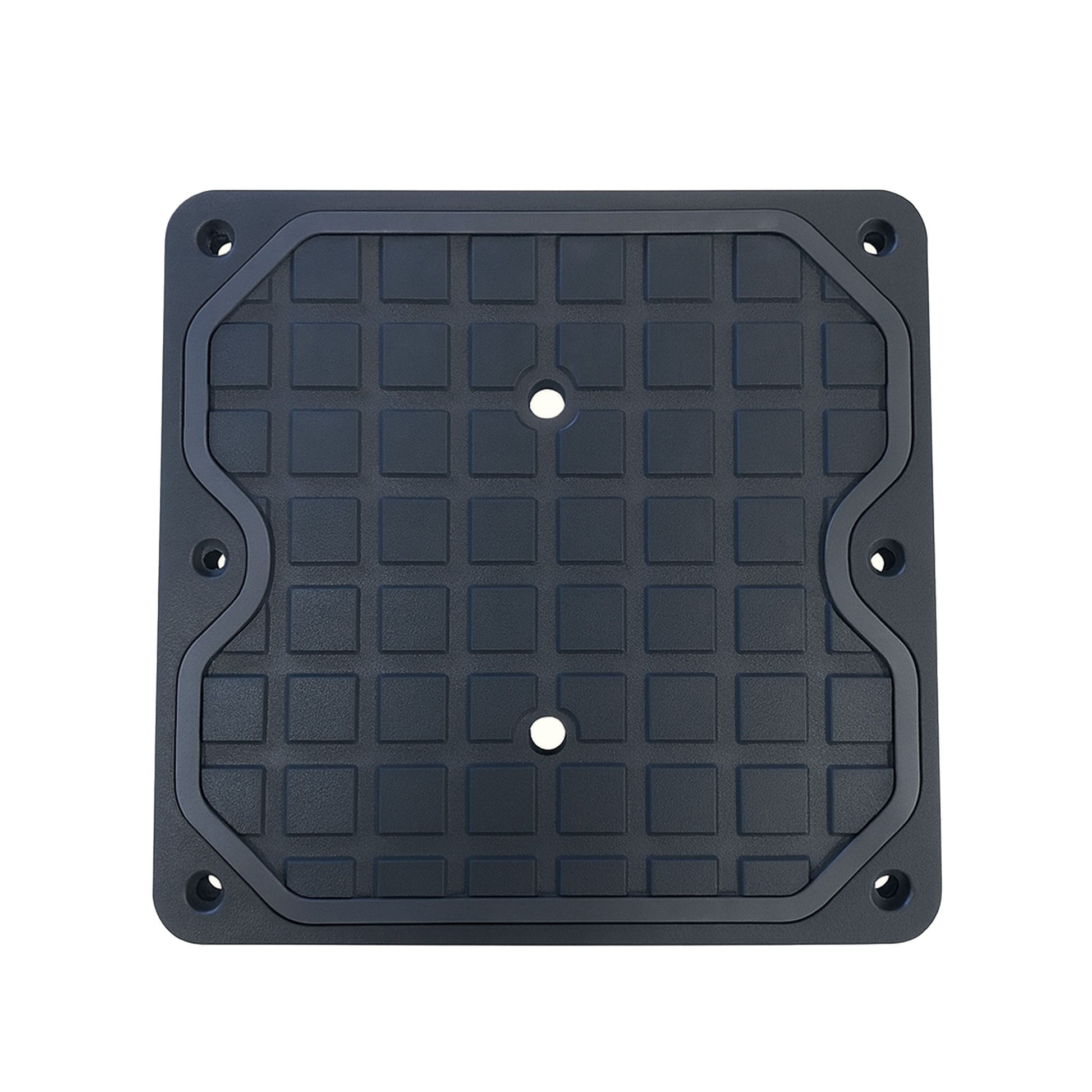

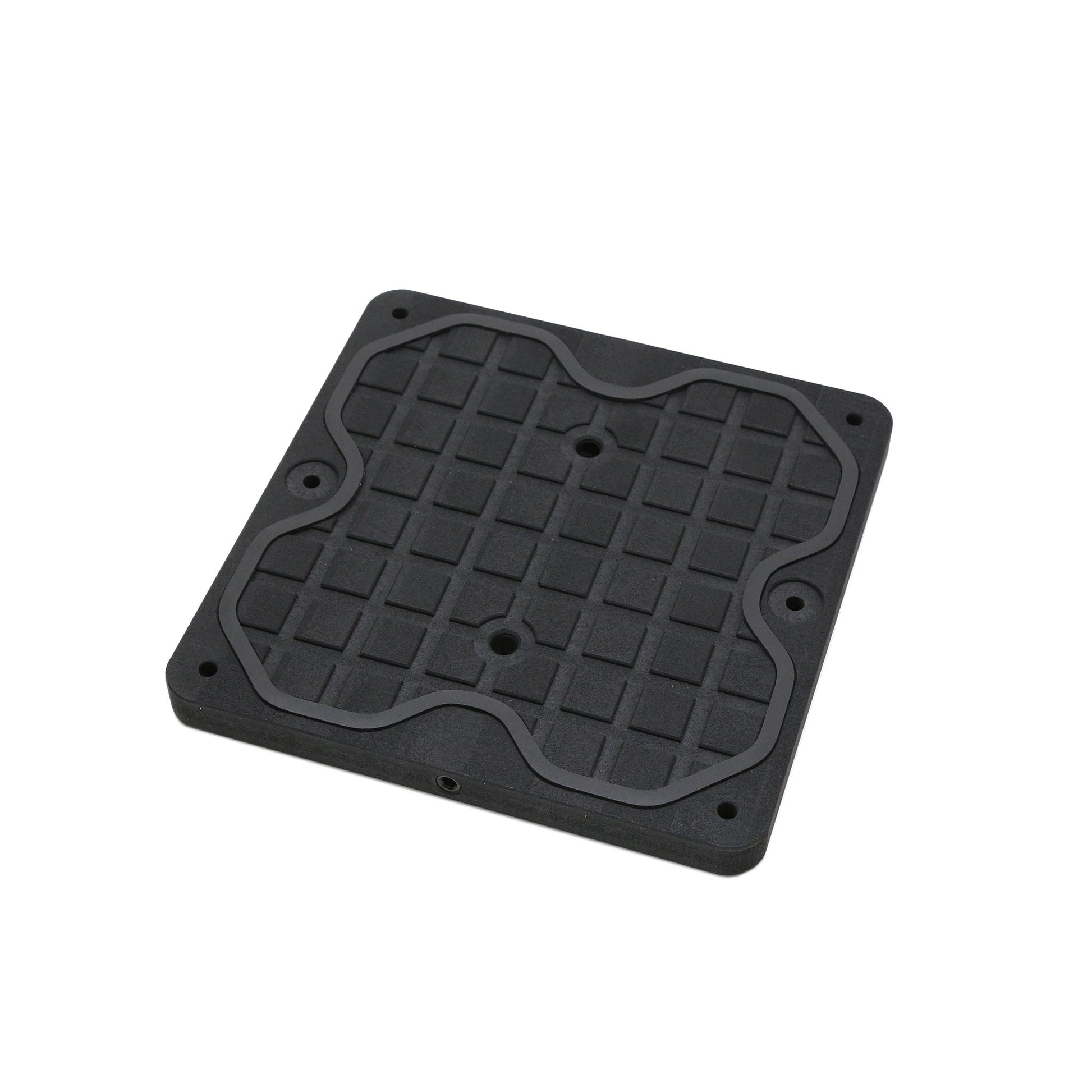

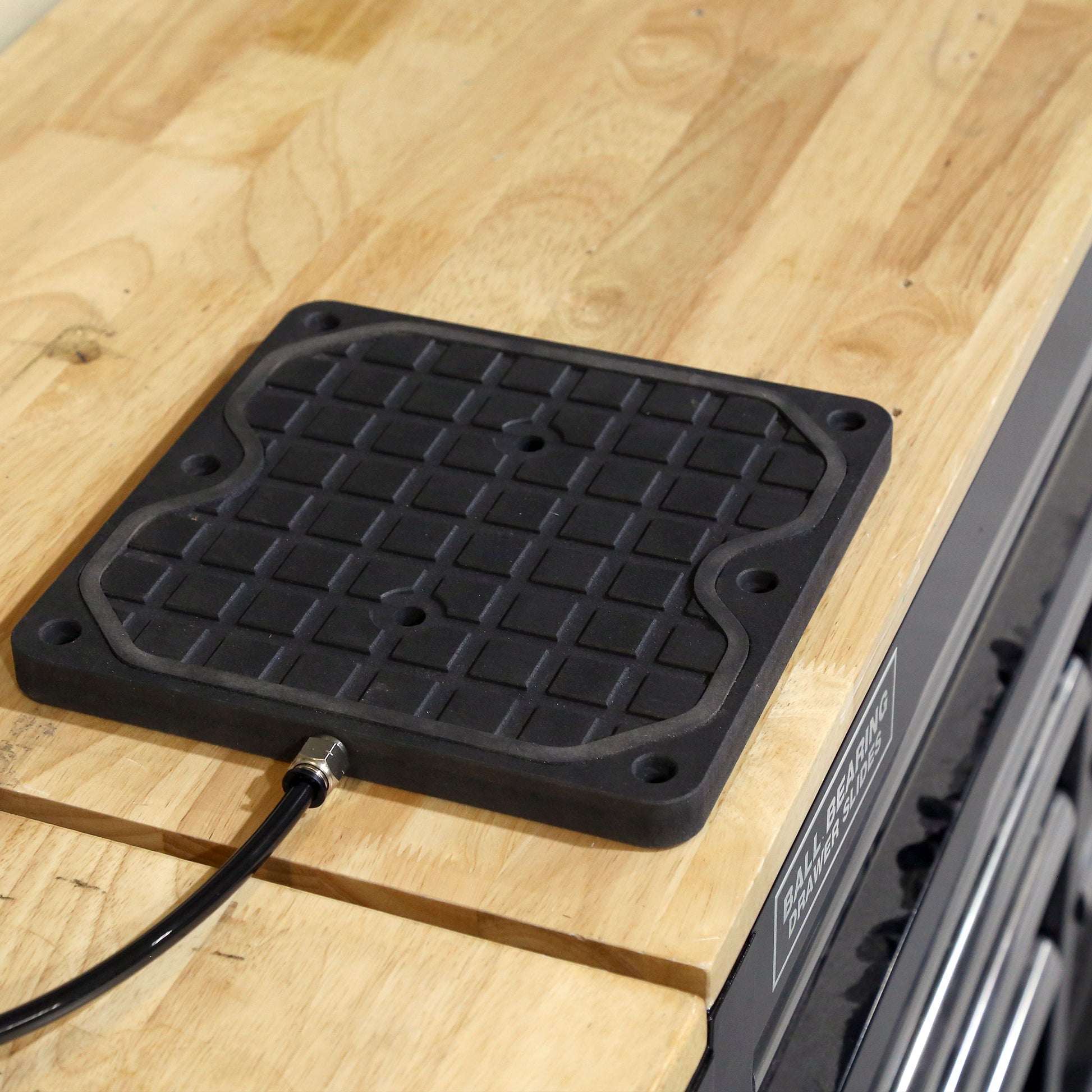

Developed in collaboration with VACUDOG™ Products, the AirWeights MFT Vacuum Clamp delivers powerful, tool-free vacuum clamping for MFTs and other worktops. Its double-sided design seals quickly to the worktop surface, providing rock-solid holding without the need for extra hardware.

The AirWeights signature 1” grid pattern adds versatility by allowing the gasket layout to isolate sections and securely hold a wide range of shapes, sizes, and small parts—making it ideal for precision woodworking and production applications. It’s perfect for sanding, edge routing, flush trimming, deburring, and more.

Vacuum is ideally supplied through a VACUDOG™ installed in the worktop, but the integrated 1/8 NPT edge ports accommodate the supplied 5/16” push-to-connect fittings for use on sealed worktops without dog holes.

Specifications:

  • Size: 8.75” × 8.75” × 11/16” thick
  • AirWeights signature 1” grid design, allows for a single zone or two independent vacuum zones
  • Fully compatible with all AirWeights gasketing and grid accessories

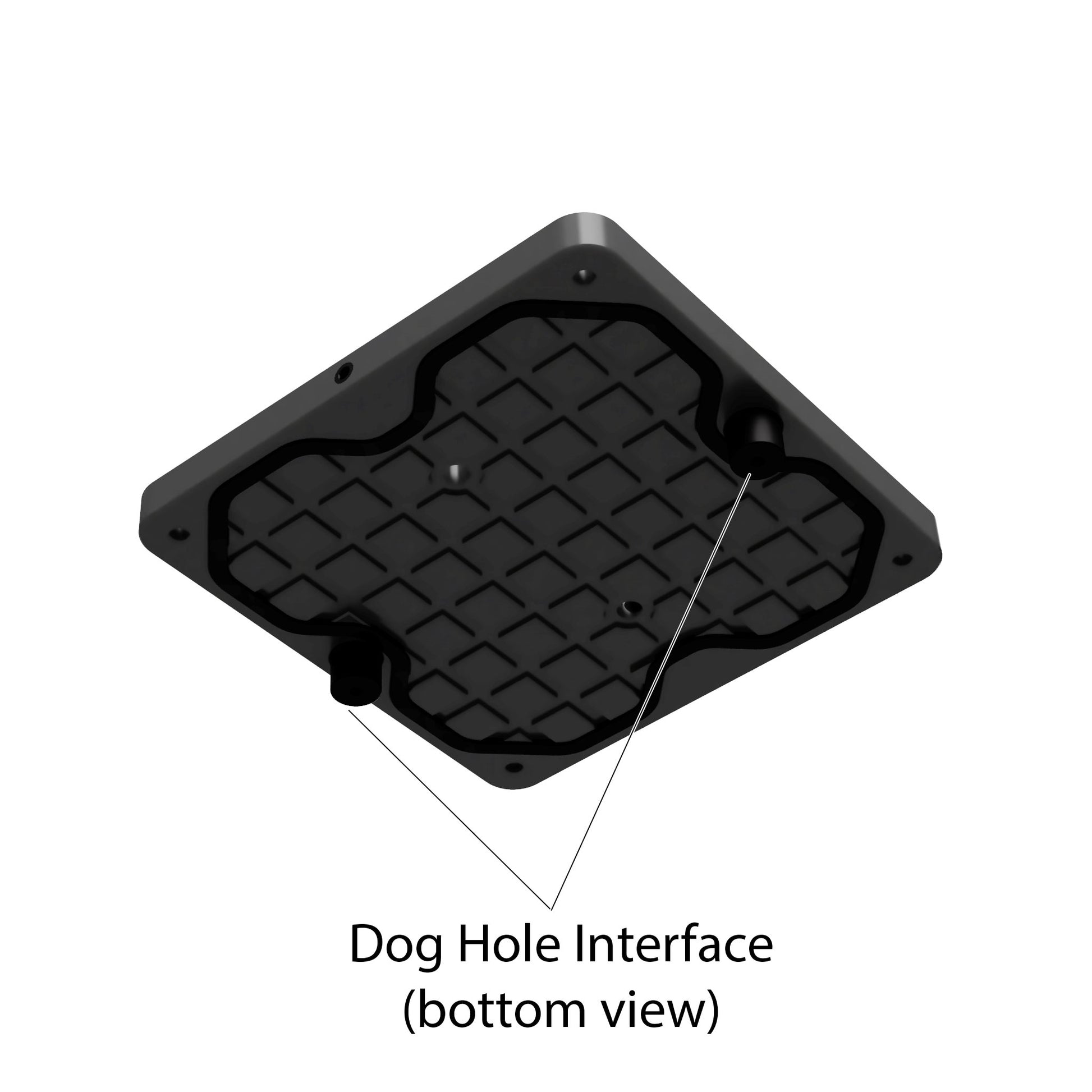

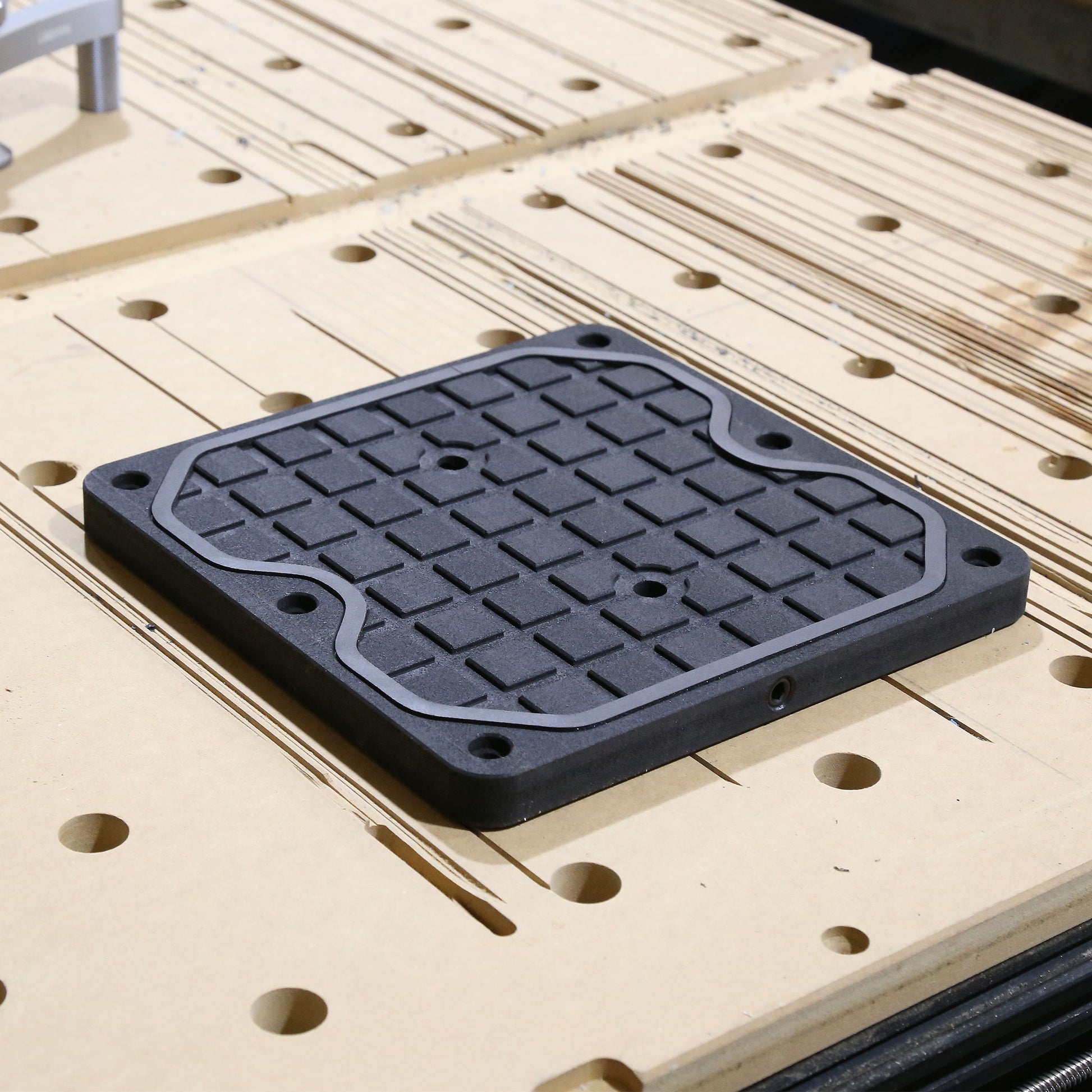

  • MFT compatible: locates rigidly on 20mm dogs holes with a 96mm on-center layout
  • Counterbored through-holes for fastening directly to a workbench with 1/4-20 screws

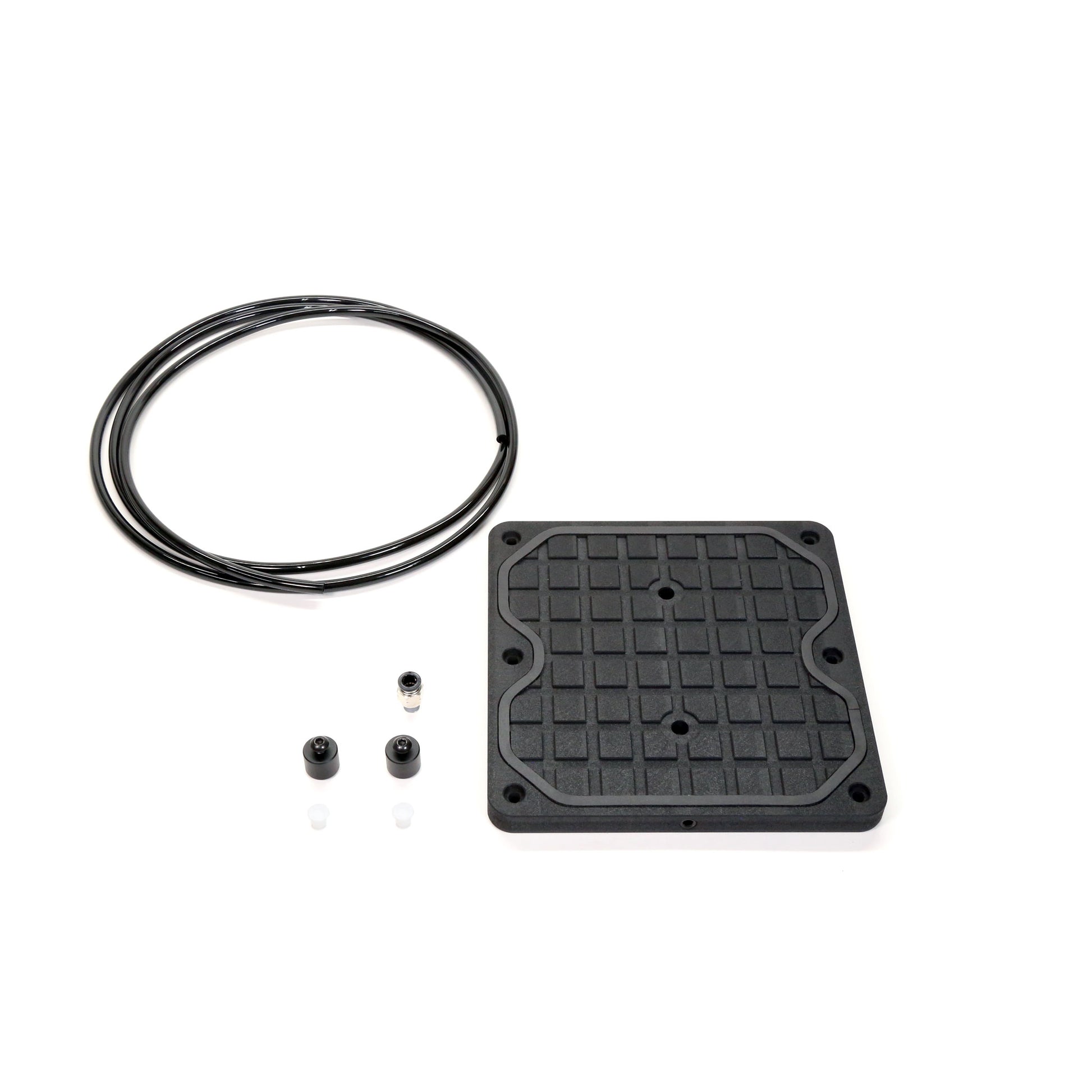

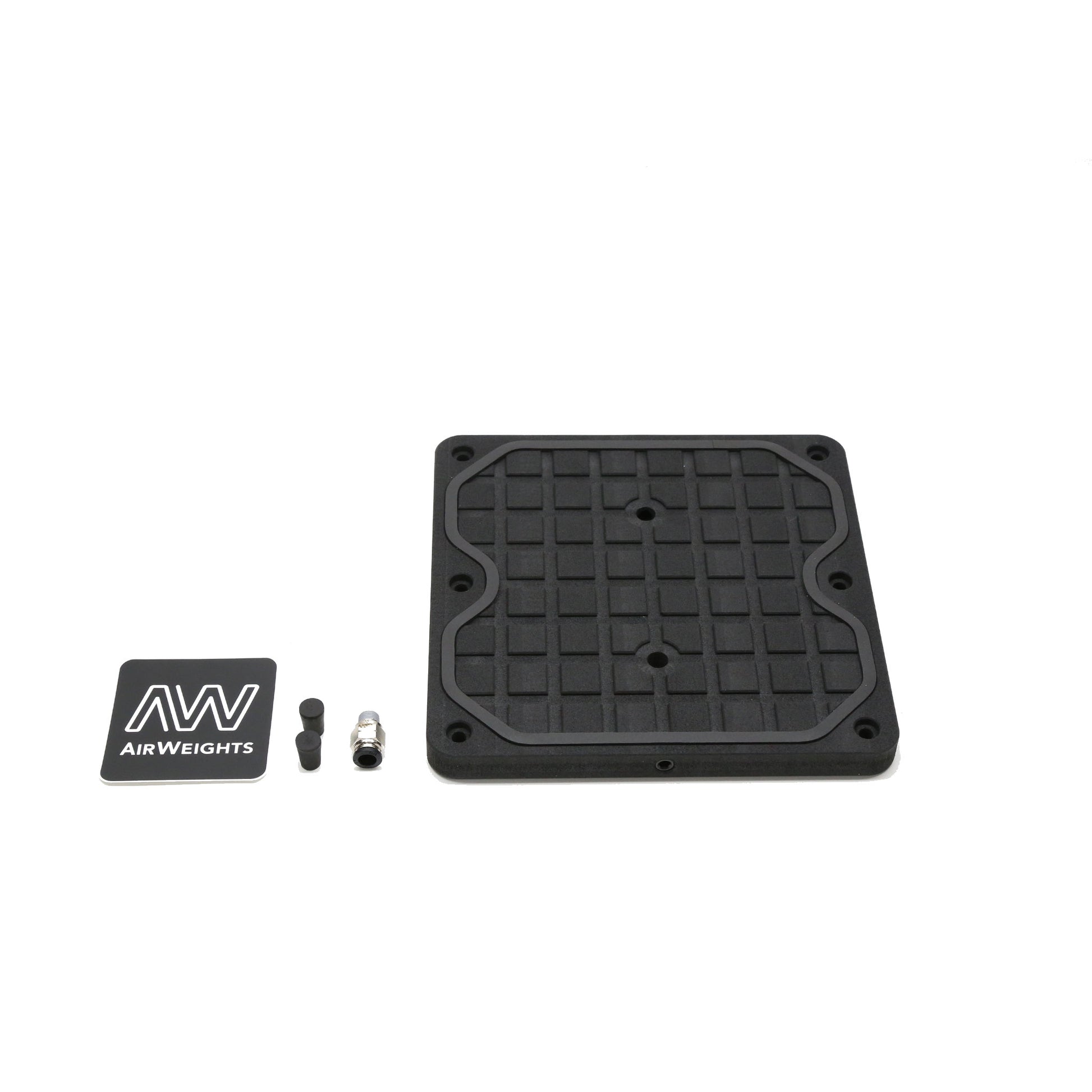

  • Includes 1/8 NPT × 5/16” OD push-to-connect vacuum fitting
  • Precision-machined in Colorado for highly accurate results



View full details

Universal Mounting

Transform Your CNC Table

The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatably using the included locating pins.

Refine your workflow

Save Time & Money

The AirWeights system gains the user several efficiencies.

  • Saves time: You can secure multiple parts quickly
  • Cut down on material waste: No need to leave room on stock for screws or clamps.
  • Maximize table space: less clamps = more workspace
  • Repeatability: Refine your workflow and make your process more efficient
  • Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold


Using What's Already There

The Weight of Air

It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.

All you have to do to unlock that weight, is create an area of low pressure below a mass, which AirWeights achieves in a compact, efficient, and affordable formfactor.

The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

AirWeights Features:

  1. Touch Plate Locating Port
  2. Quick Disconnect Fittings
  3. Locating Pin Holes (4)
  4. Pre-installed Perimeter Gasket
  5. Mounting Holes and Slots (12)
  6. Vacuum Ports (9)
  7. 1" Grid Pattern (customizable gasket layout)
