AirWeights Table 24x24
AirWeights Table 24x24
Notice: Please allow 4-6 weeks for your order to ship.
Introducing the AirWeights Workholding System. A versatile, affordable, and easy to use vacuum table system for your CNC machine.
The vacuum table is a powerful tool on a CNC machine, offering dozens of advantages that benefit users of all levels. For the new user, the vacuum table is easy, forgiving, and a fast method to learn. For the production environment, the vacuum table offers efficient, reliable, and repeatable workholding.
Vacuum workholding removes the need for clamps, screws, tapes, or glues. You can secure your work to the table faster than ever, and there will be no obstacles in the way for your machine to run into. No more crashing your machine or breaking bits on clamps and screws!

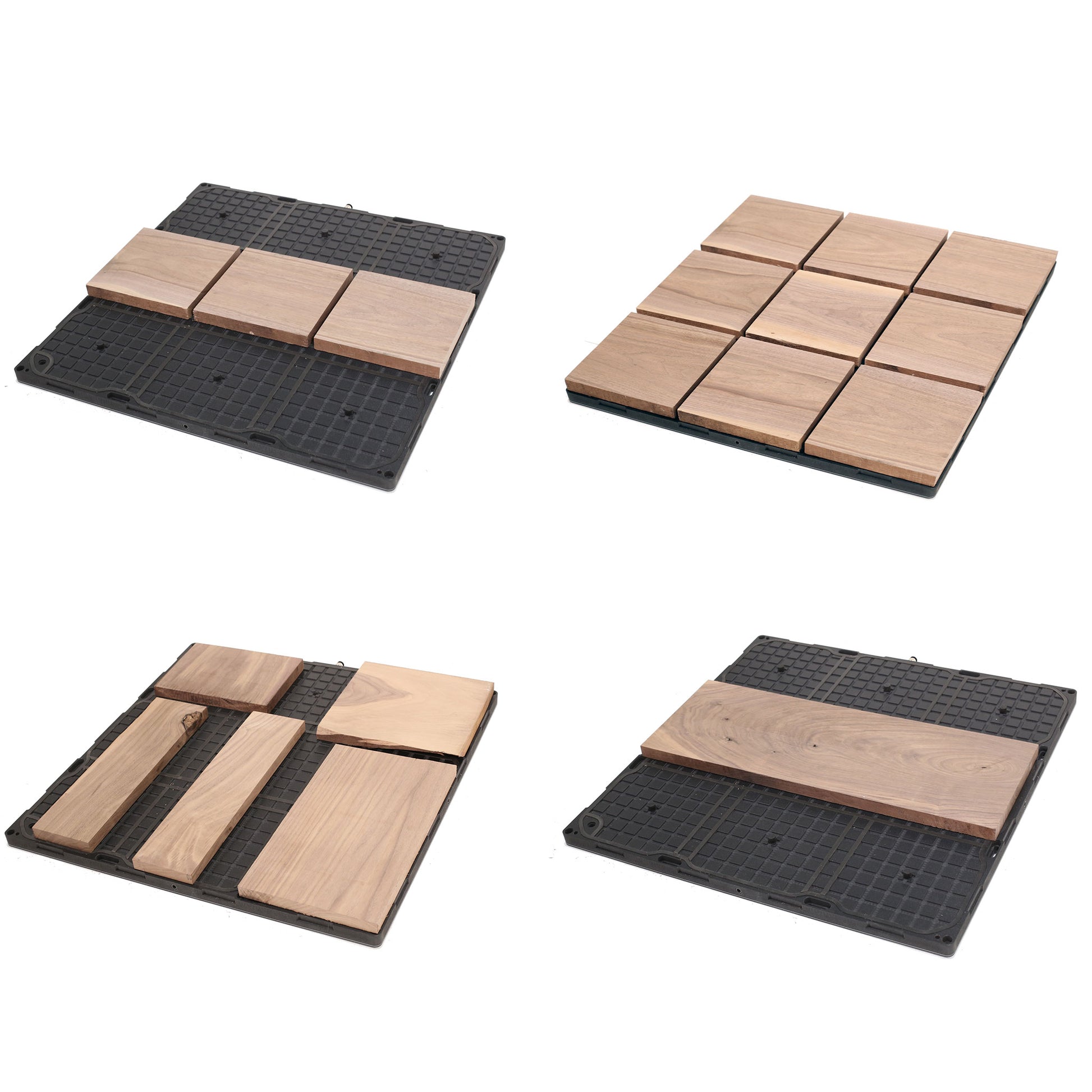

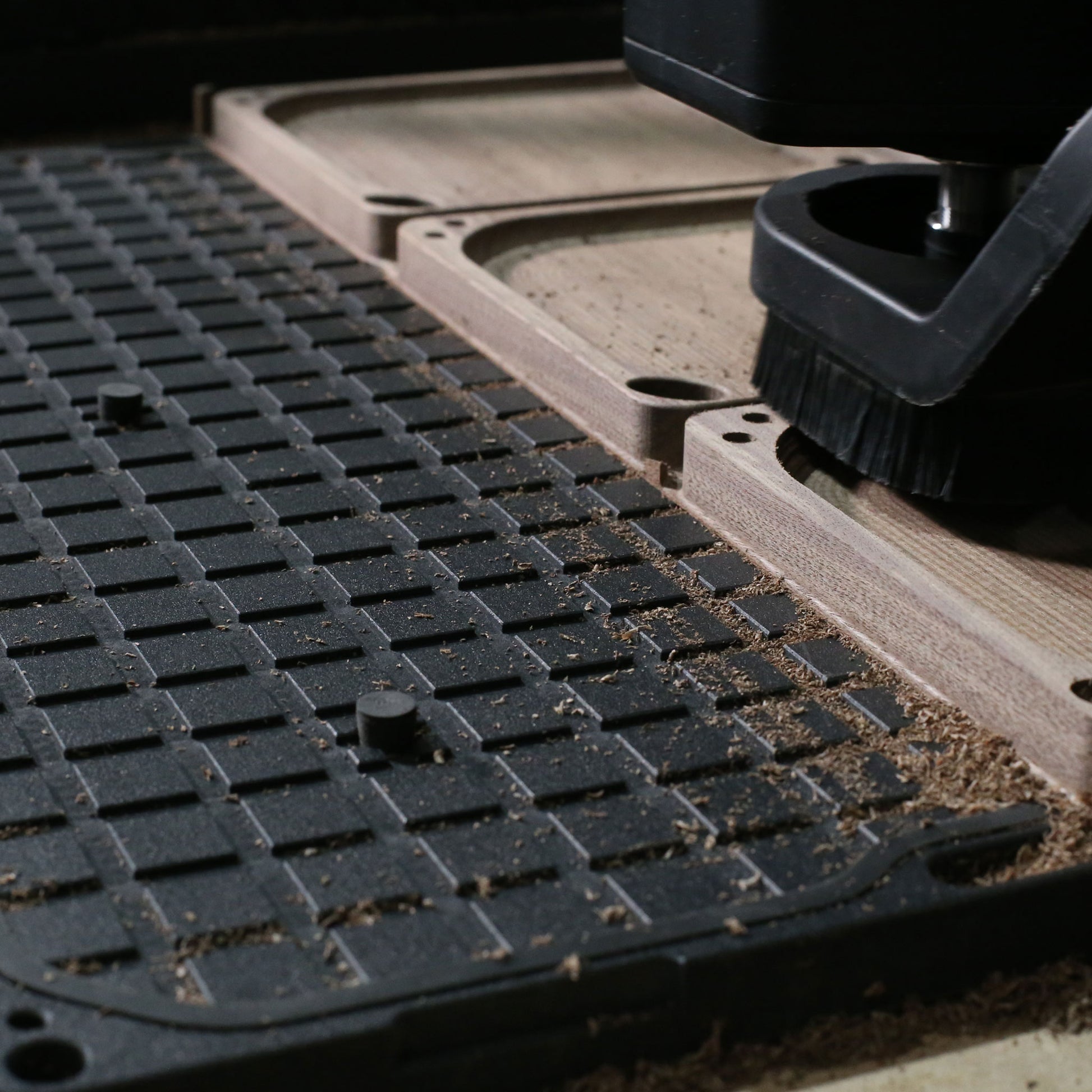

With a total of 10 suction ports, and a fully reconfigurable gasket grid, you can hold a variety of shapes, sizes, and quantities of work-material; making the system incredibly convenient and versatile. Combined with our optional fixture plates, you can also attain the most efficient and reliable workflow for batches and repeat runs.

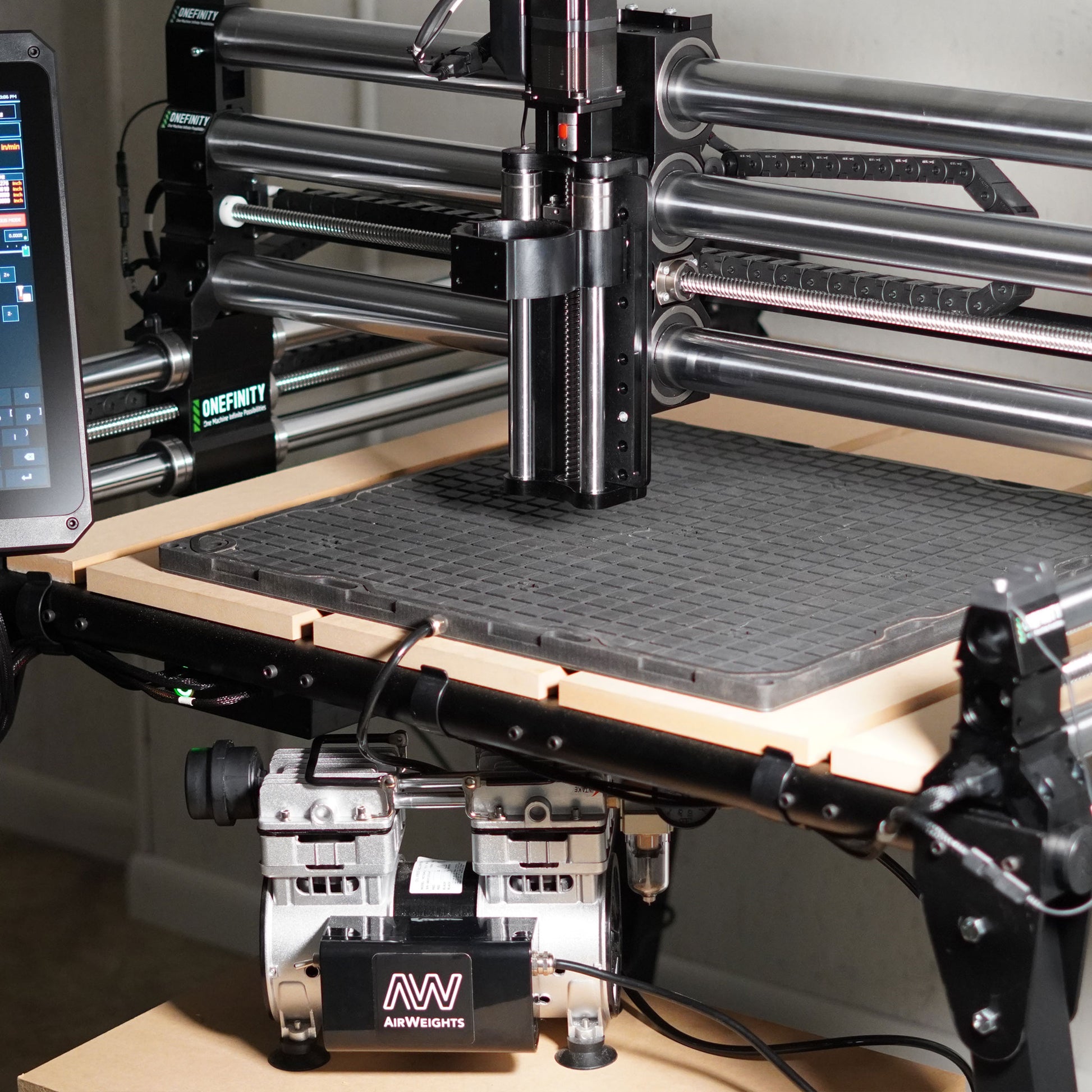

Our integrated manifold design makes the AirWeights vacuum table the most compact available, at just 0.8" thick. Our highly efficient vacuum pump consumes less energy, takes up less space, and makes less noise. And combining the two, the AirWeights system provides an incredible 8,000lbs+ of holding power, instantly, at the flip of a switch.
The AirWeights kit includes everything you need to get started, and setup takes just a few minutes. The 24"x24" table can be attached to nearly any CNC machine, with multiple integral slots for screwing or clamping the AirWeights to your machine. The AirWeights can be removed from your machine just as easily, and the included locating pins ensure accurate and repeatable mounting and re-mounting.

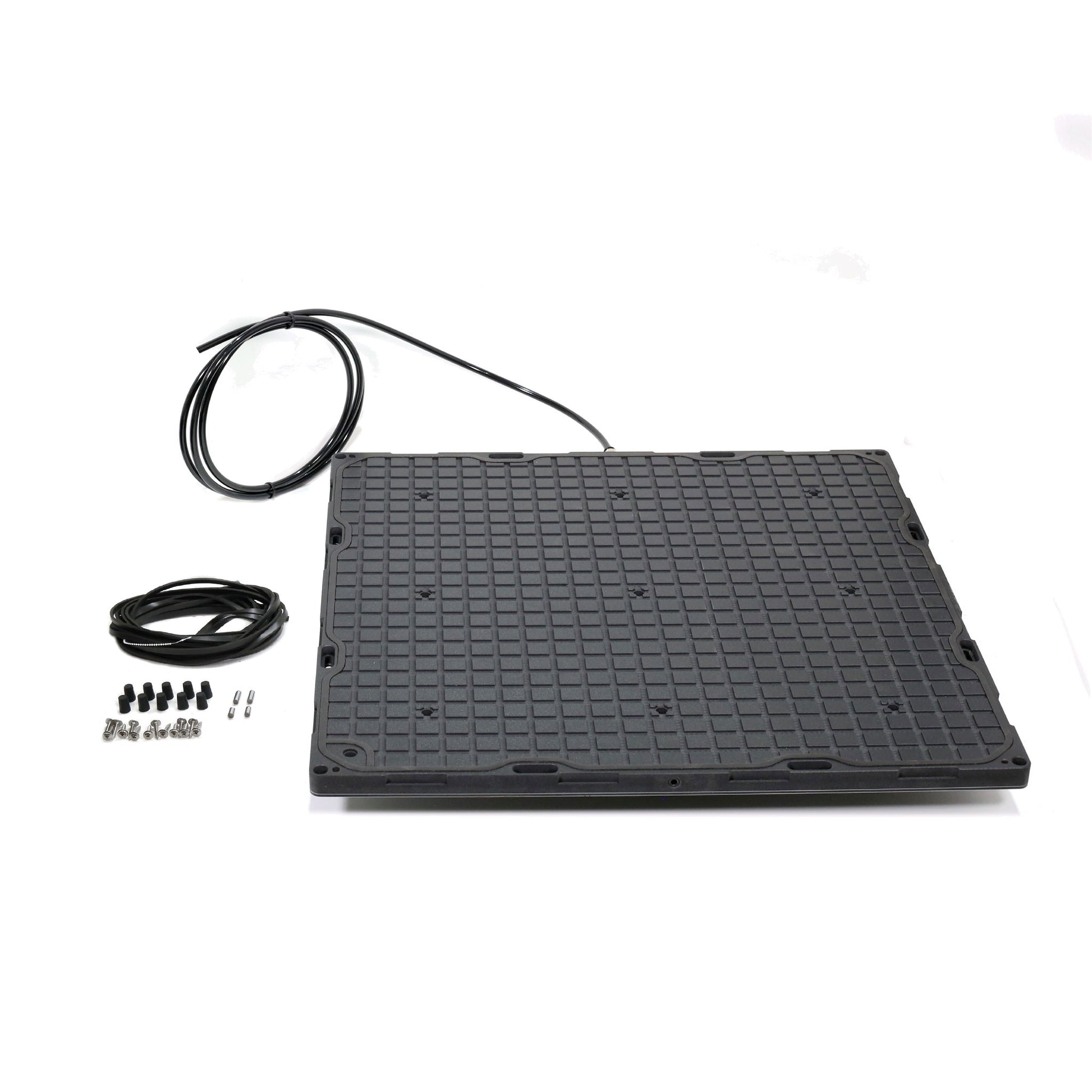

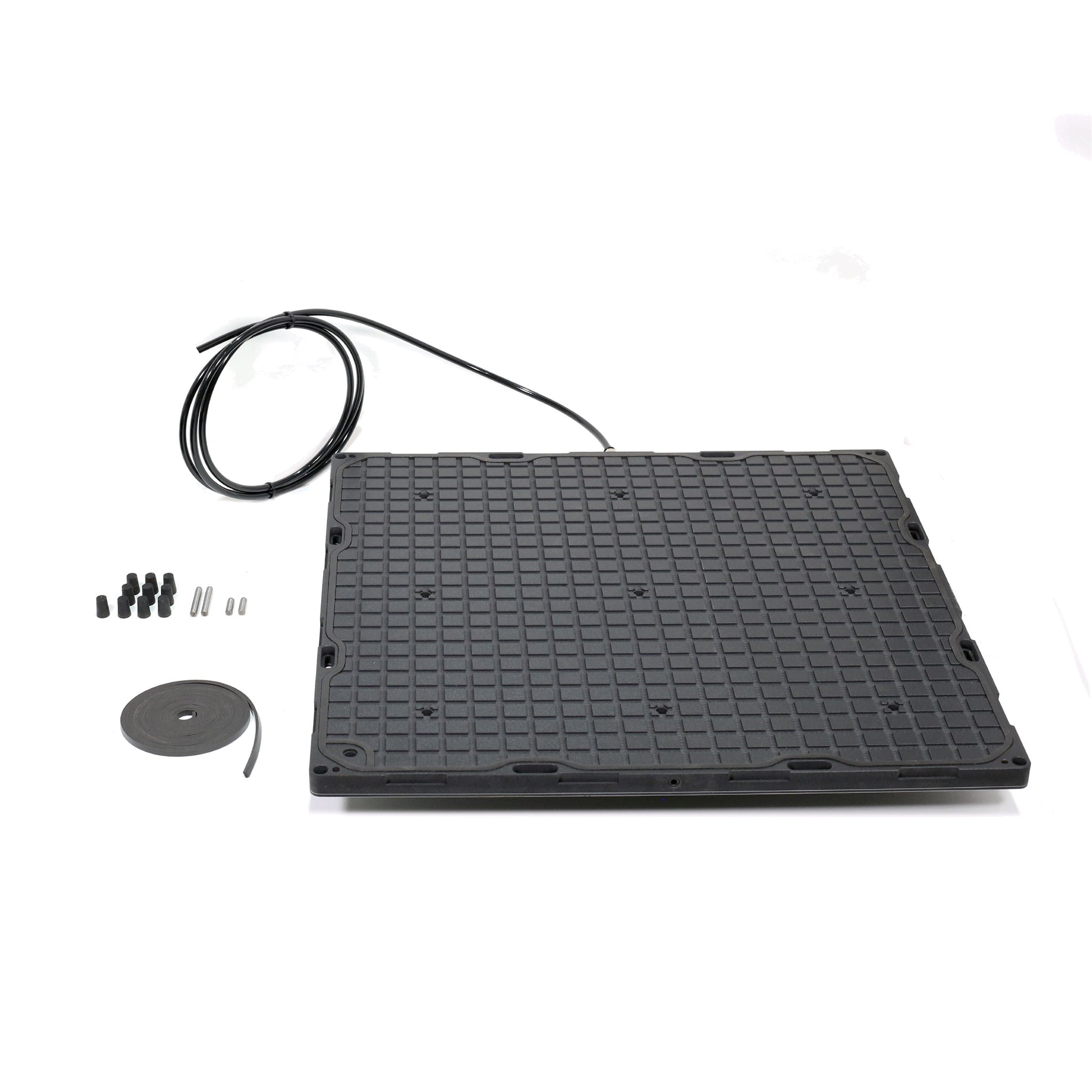

The AirWeights Table Kit Includes:
- 24x24 AirWeights Table
- Gasket Material
- Mounting Screws
- Locating Pins
- Quick Disconnect Fittings, 8' of air line

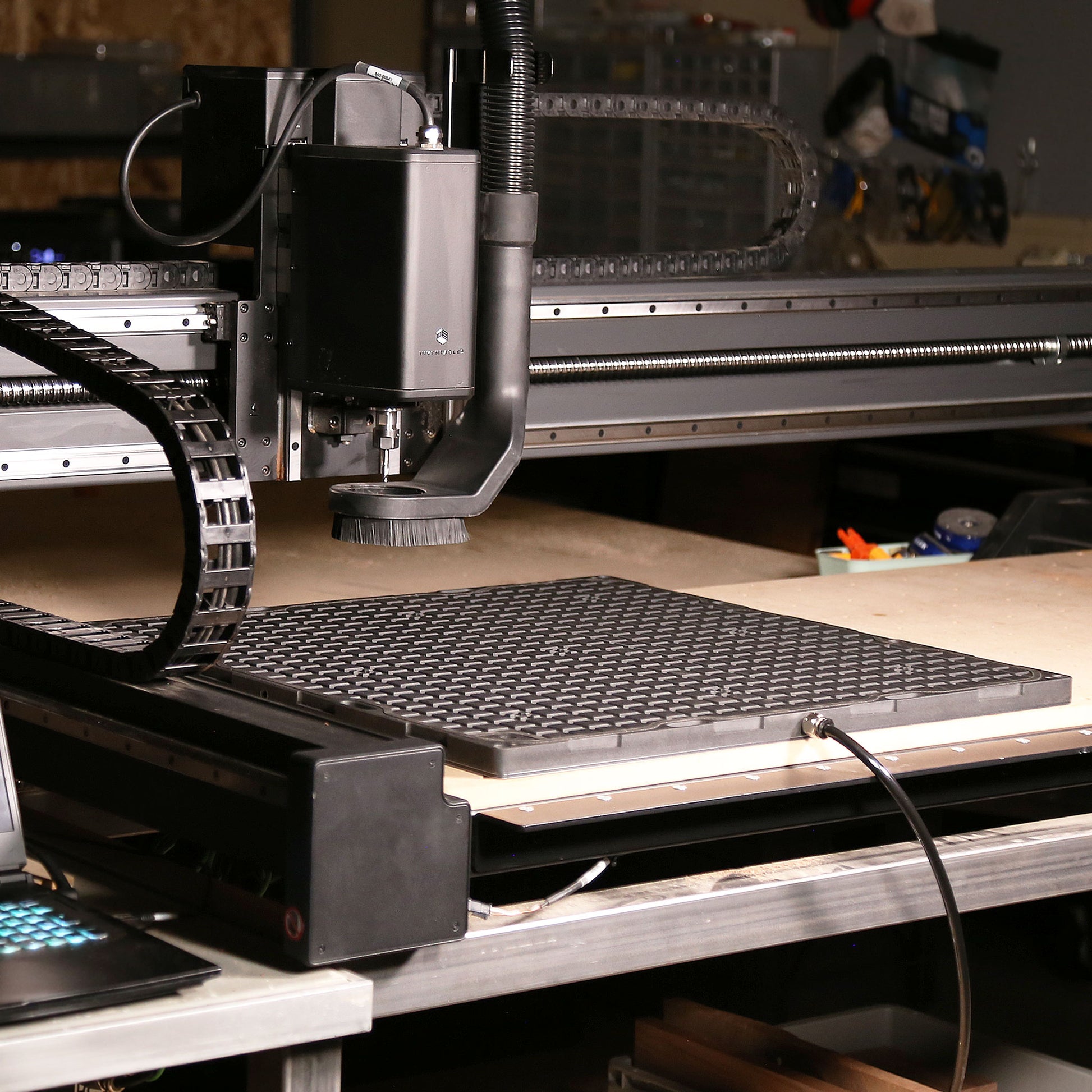

Transform Your CNC Table
The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatably using the included locating pins.
Save Time & Money
The AirWeights system gains the user several efficiencies.
- Saves time: You can secure multiple parts quickly
- Cut down on material waste: No need to leave room on stock for screws or clamps.
- Maximize table space: less clamps = more workspace
- Repeatability: Refine your workflow and make your process more efficient
- Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold
The Weight of Air
It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.
All you have to do to unlock that weight, is create an area of low pressure below a mass, which we achieve in a compact, efficient, and affordable formfactor.
The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

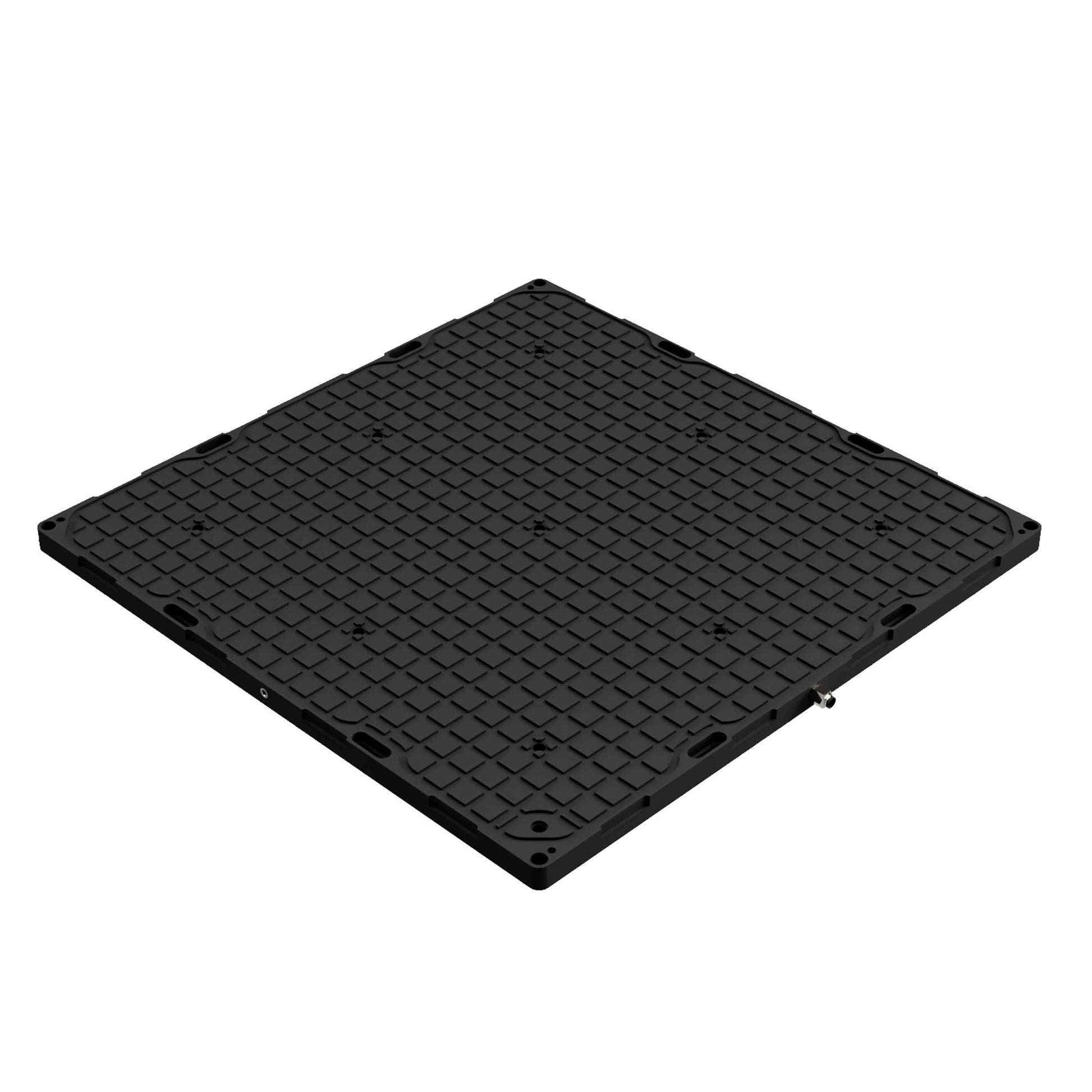

- Touch Plate Locating Port
- Quick Disconnect Fittings
- Locating Pin Holes (4)
- Pre-installed Perimeter Gasket
- Mounting Holes and Slots (12)
- Vacuum Ports (9)
- 1" Grid Pattern (customizable gasket layout)
