AirWeights

AirWeights Manifold

AirWeights Manifold

$99.00 USD
$99.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

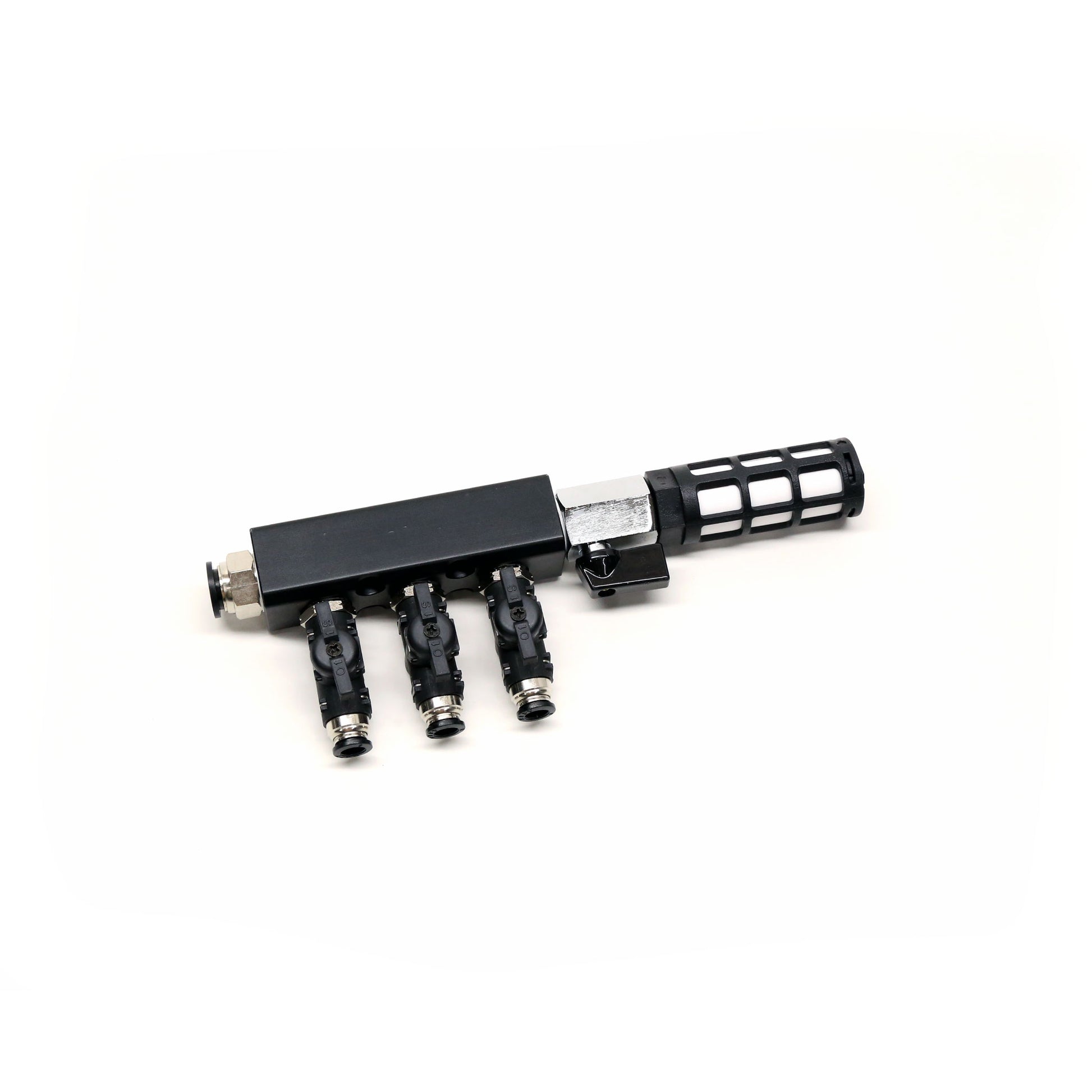

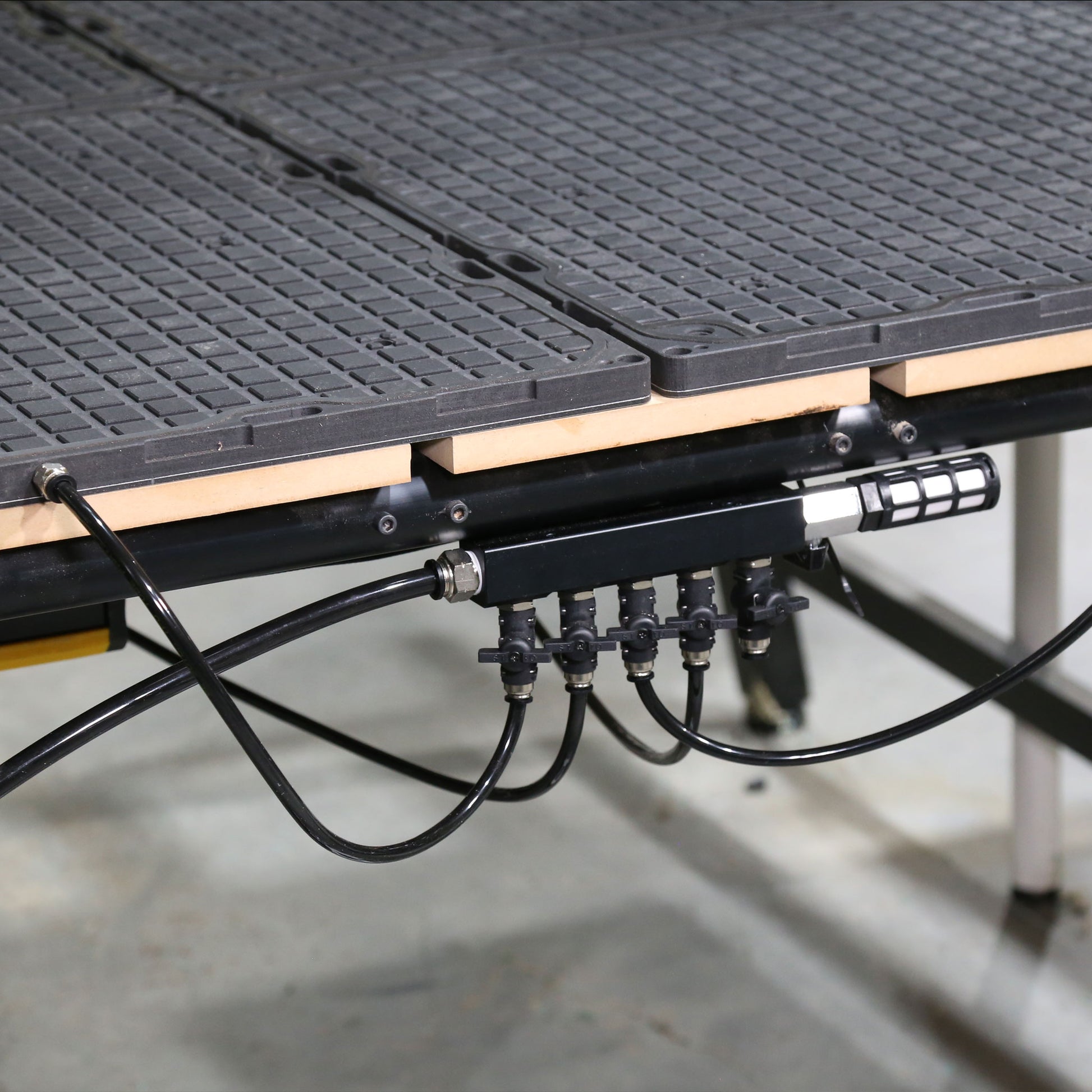

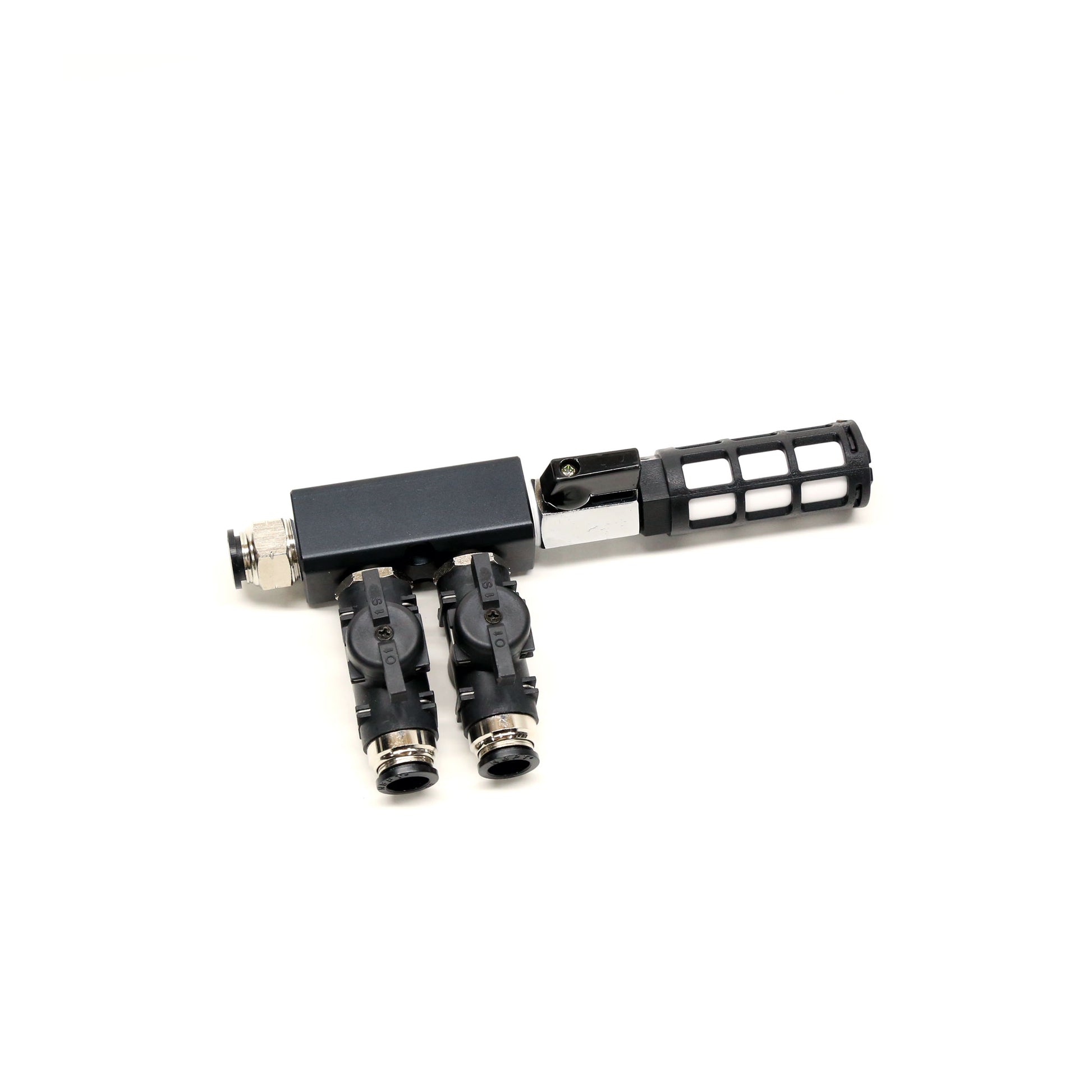

These manifolds provide convenient routing and added control of your air line runs. Each zone includes a valve, giving you independent control of every vacuum table in your setup.

The manifolds are intended for use with a 17 CFM pump to control multiple vacuum zones. The main outlet is fitted with a larger 1/2" sized air line that connects directly to the 17CFM pump. Each of the vacuum line receptacles features a 5/16 quick disconnect fitting with a valve for flow control.

The end is fitted with a filter and one extra valve. This valve is useful as a pressure release  for fast part removal in between runs.  Additionally, the body of the manifold includes multiple 'through-holes' for easy mounting of the unit.

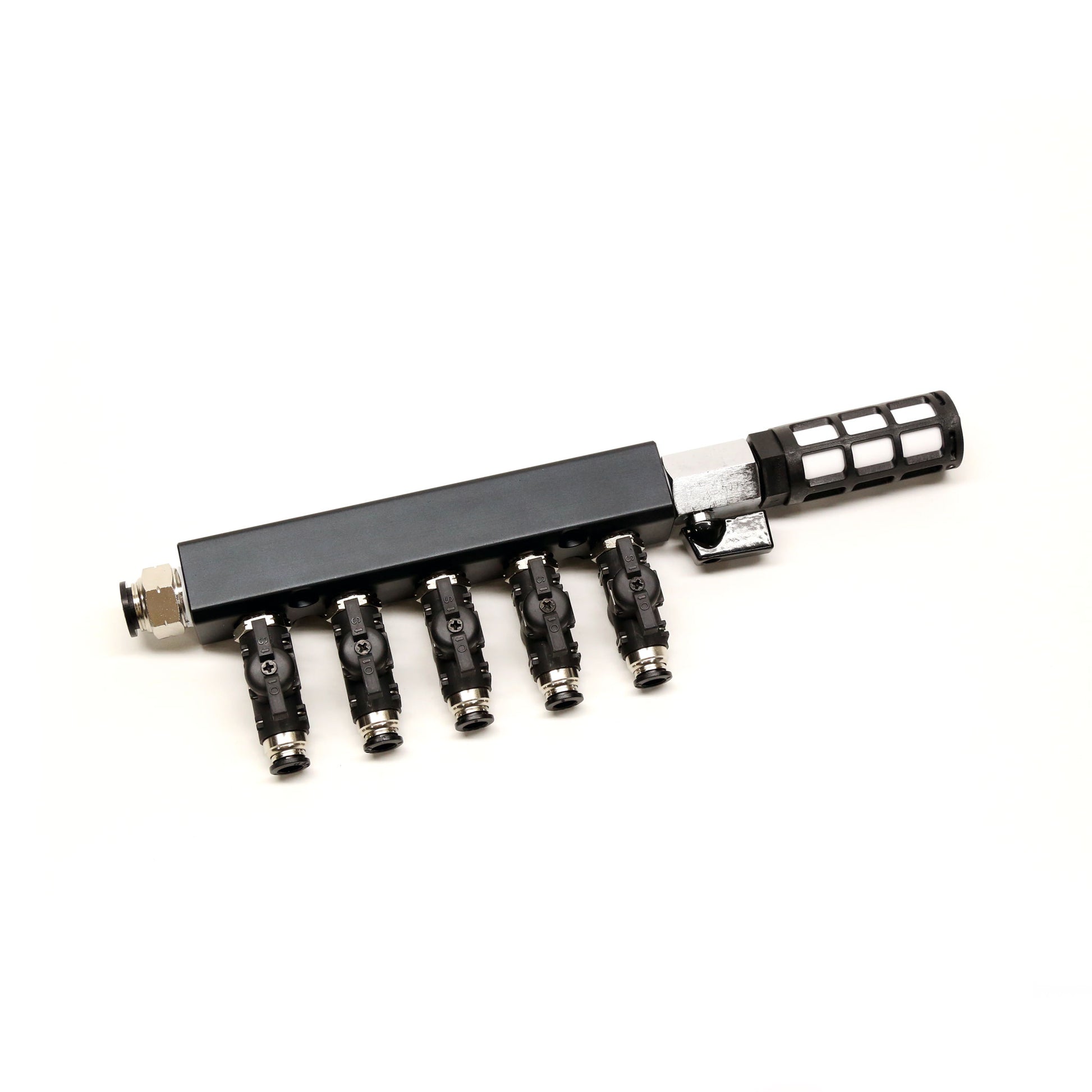

Available in 3-zone and 5-zone configurations.

View full details

Universal Mounting

Transform Your CNC Table

The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatably using the included locating pins.

Refine your workflow

Save Time & Money

The AirWeights system gains the user several efficiencies.

  • Saves time: You can secure multiple parts quickly
  • Cut down on material waste: No need to leave room on stock for screws or clamps.
  • Maximize table space: less clamps = more workspace
  • Repeatability: Refine your workflow and make your process more efficient
  • Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold


Using What's Already There

The Weight of Air

It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.

All you have to do to unlock that weight, is create an area of low pressure below a mass, which AirWeights achieves in a compact, efficient, and affordable formfactor.

The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

AirWeights Features:

  1. Touch Plate Locating Port
  2. Quick Disconnect Fittings
  3. Locating Pin Holes (4)
  4. Pre-installed Perimeter Gasket
  5. Mounting Holes and Slots (12)
  6. Vacuum Ports (9)
  7. 1" Grid Pattern (customizable gasket layout)
