The AirWeights Workholding System
Discover our modular vacuum table solution, and upgrade your CNC capabilities!

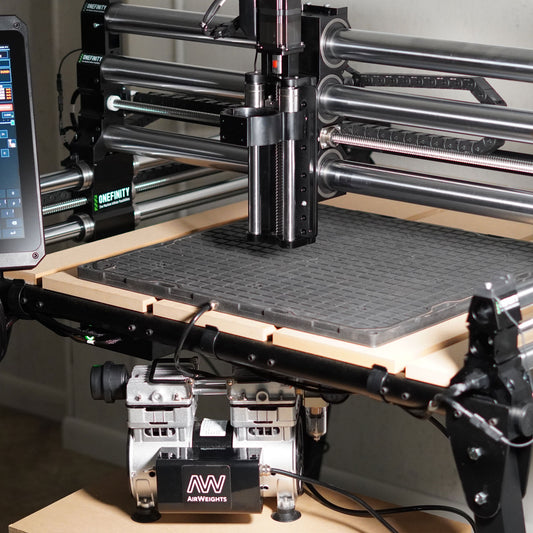

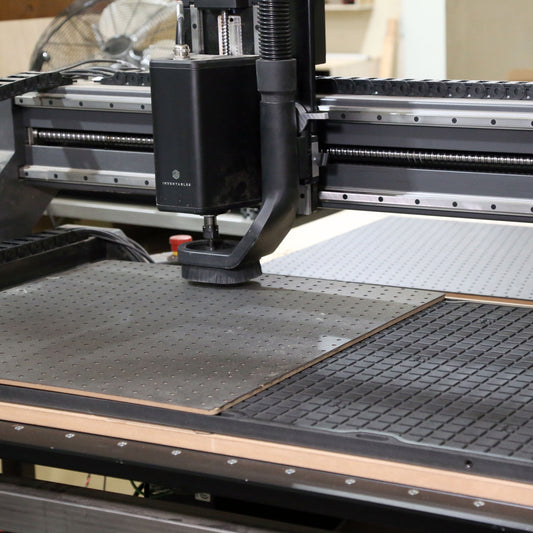

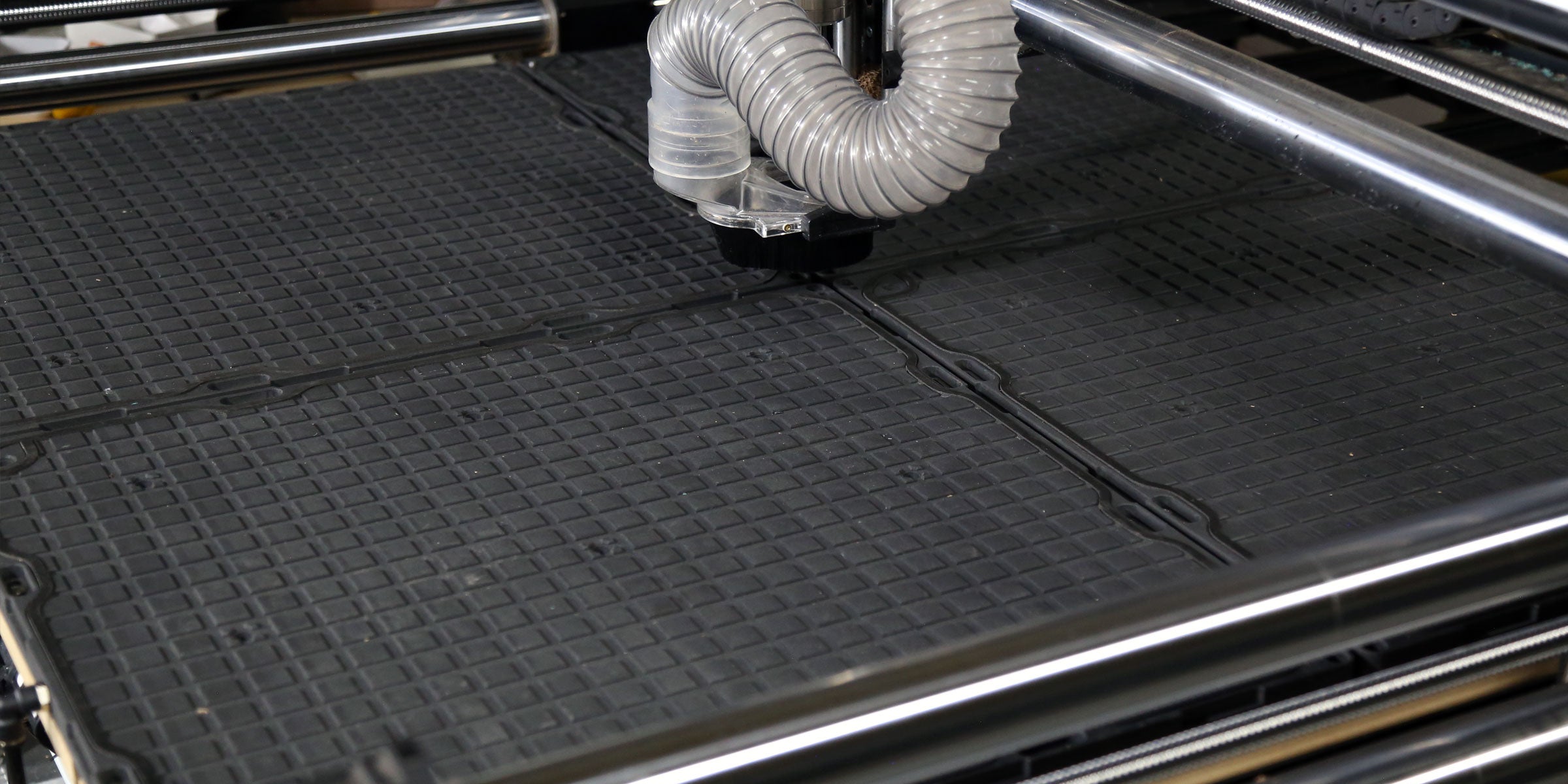

Transform Your CNC Table
The AirWeights system is designed to mount to any CNC machine, and setup is quick and easy. You can remove the AirWeights at any time, and reinstall repeatedly using the included locating pins.
AirWeights turns any CNC table into a powerful and modular vacuum workholding table, and will unleash new levels of capability and efficiency from your machine.
Save Time & Money
The AirWeights system gains the user several efficiencies.
- Saves time: You can secure multiple parts quickly
- Cut down on material waste: No need to leave room on stock for screws or clamps.
- Maximize table space: less clamps = more workspace
- Repeatability: Refine your workflow and make your process more efficient
- Reliability: Holding force is distributed evenly under your entire workpiece for a uniform and reliable hold
The Weight of Air
It might not seem like it, but air is heavy! The pressure of the atmosphere above us pushes down with a force of almost 15lbs per square inch.
To unlock that weight, you must create an area of low pressure below a mass, which AirWeights achieves in a compact, efficient, and affordable formfactor.
The 24x24 AirWeights table can unleash nearly 8,000lbs of holding power at the flip of a switch!

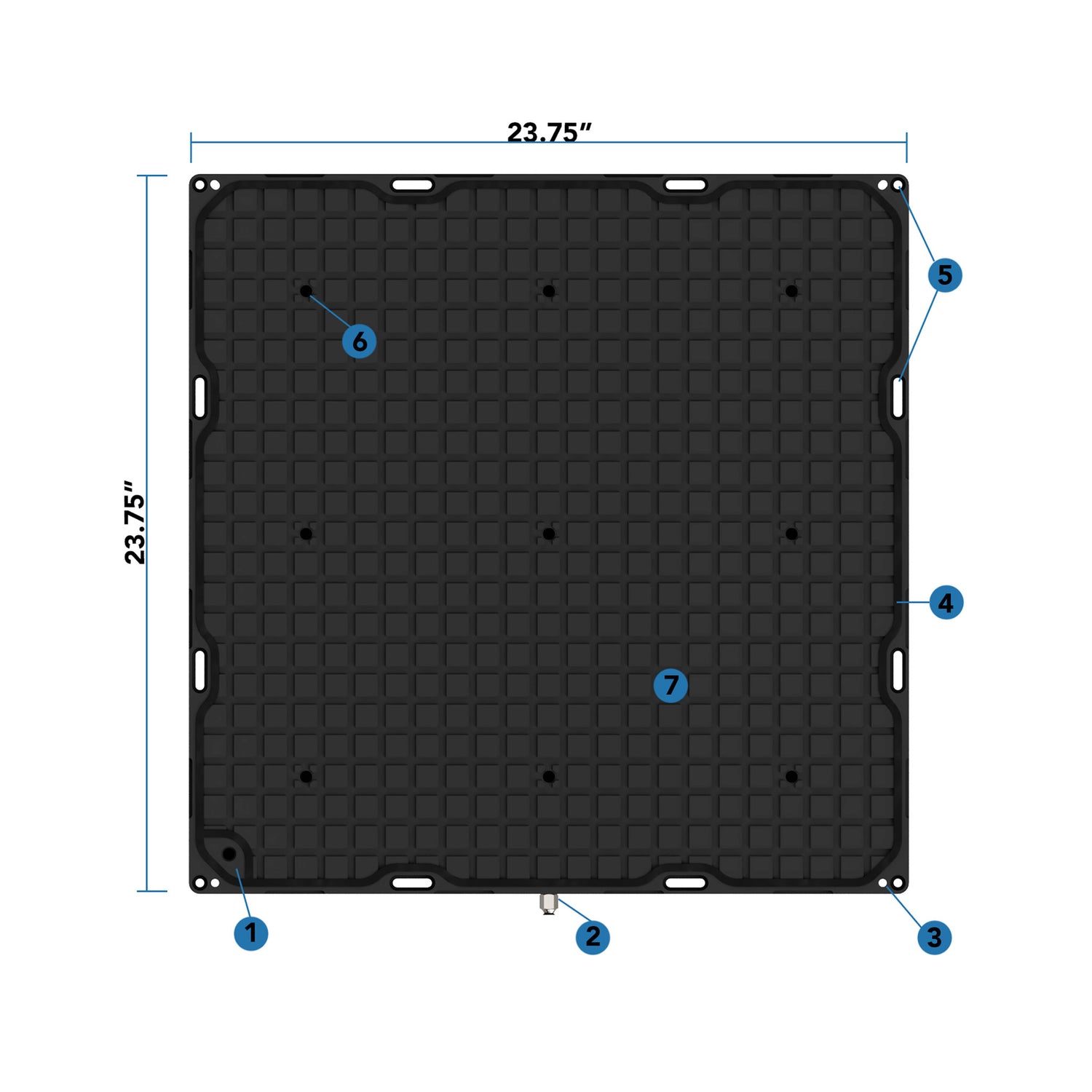

AirWeights Features:
- Touch Plate Locating Port
- Quick Disconnect Fittings
- Locating Pin Holes (4)
- Pre-installed Perimeter Gasket
- Mounting Holes and Slots (12)
- Vacuum Ports (9)
- 1" Grid Pattern (customizable gasket layout)
Featured products
-

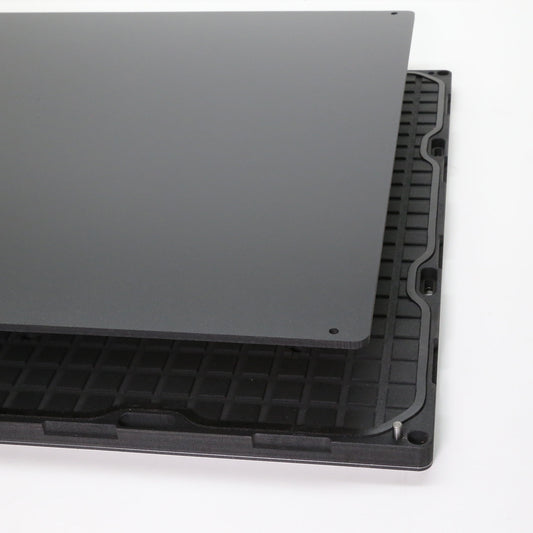

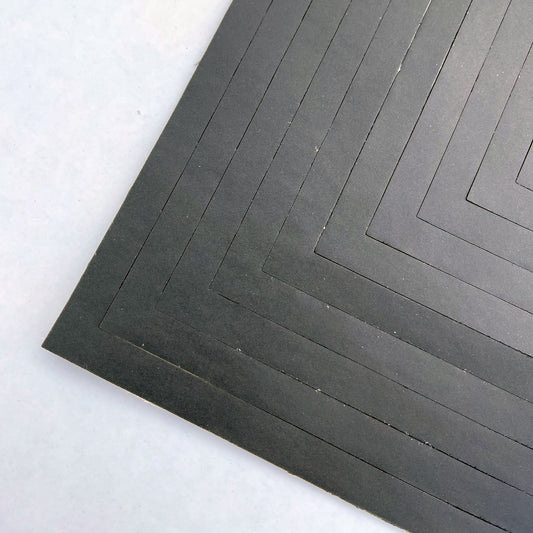

Adhesive Gasket
Regular price $29.00 USDRegular priceUnit price / per -

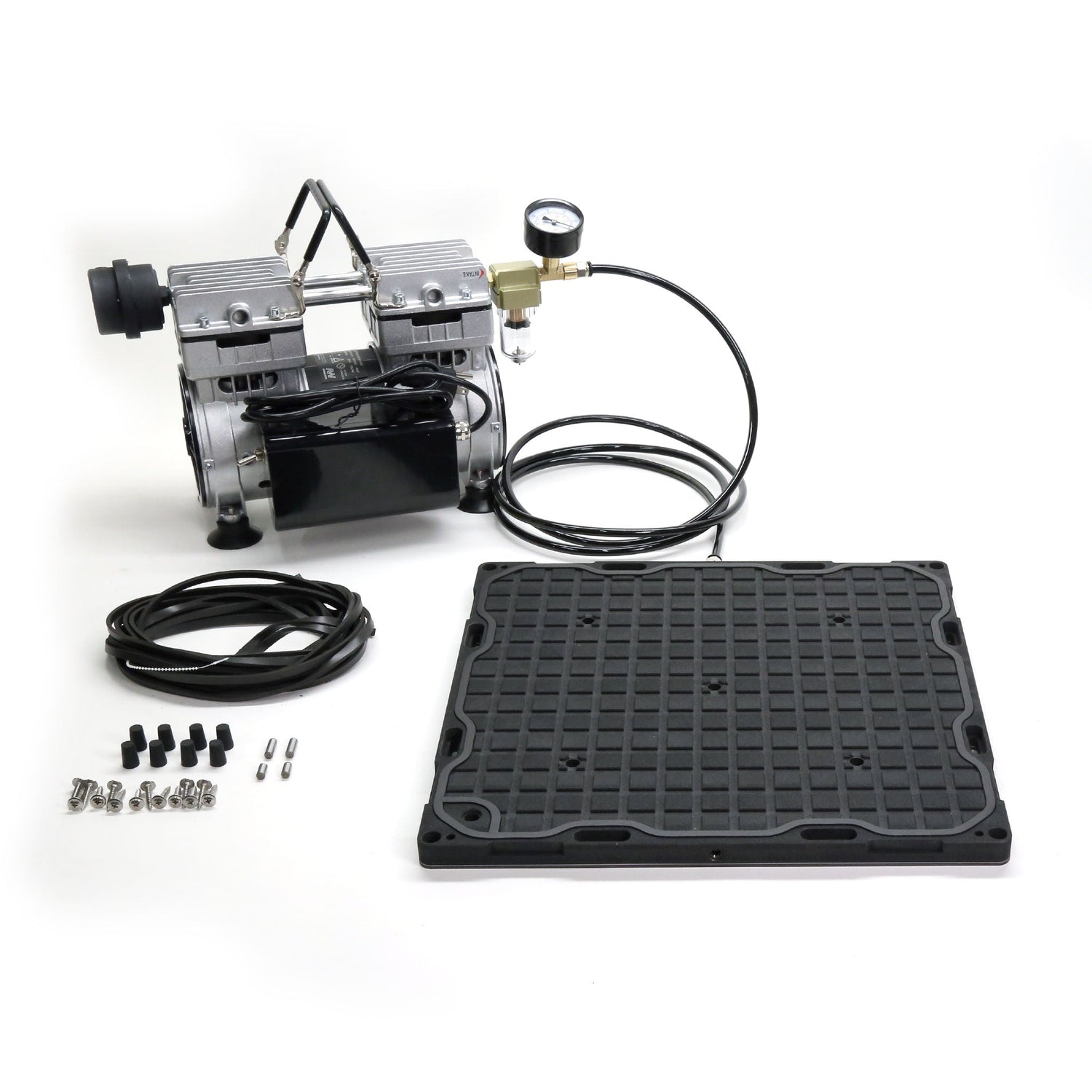

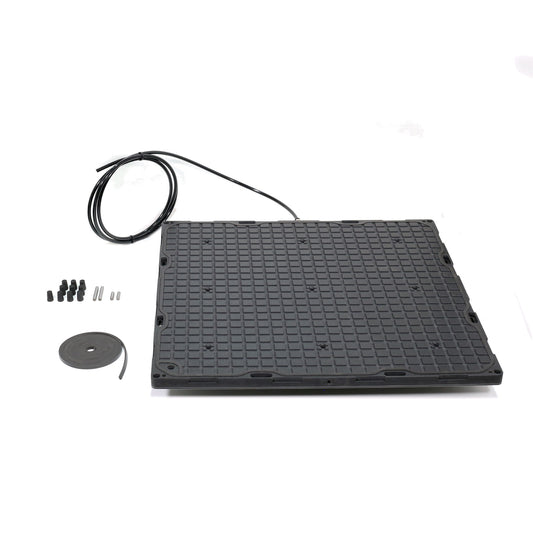

AirWeights Complete System 16 x 16
Regular price $579.00 USDRegular priceUnit price / per$620.00 USDSale price $579.00 USDSale -

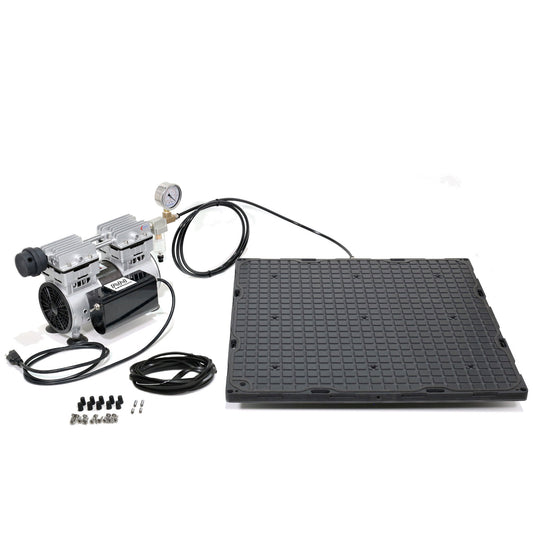

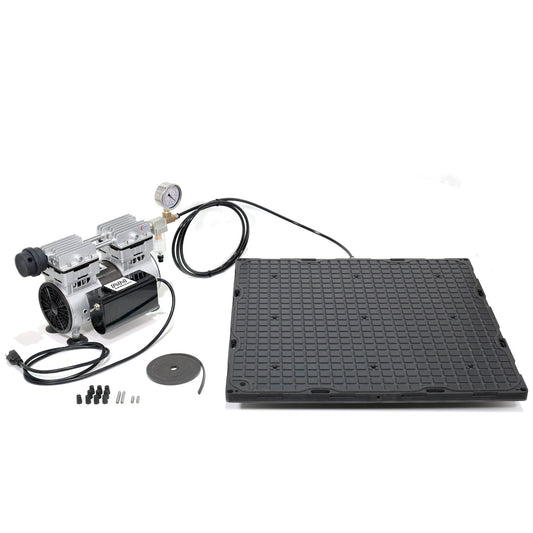

AirWeights Complete System 24 x 24
Regular price $749.00 USDRegular priceUnit price / per$790.00 USDSale price $749.00 USDSale -

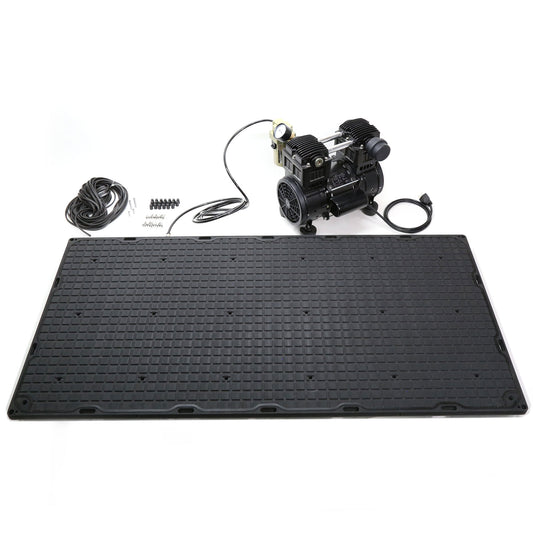

AirWeights Complete System 24 x 48
Regular price $1,549.00 USDRegular priceUnit price / per$1,590.00 USDSale price $1,549.00 USDSale -
AirWeights Table 16x16
Regular price $199.00 USDRegular priceUnit price / per$225.00 USDSale price $199.00 USDSale -

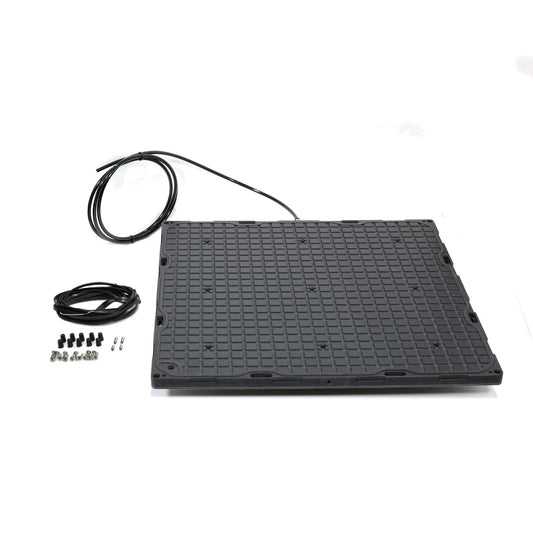

AirWeights Table 24x24
Regular price $395.00 USDRegular priceUnit price / per -

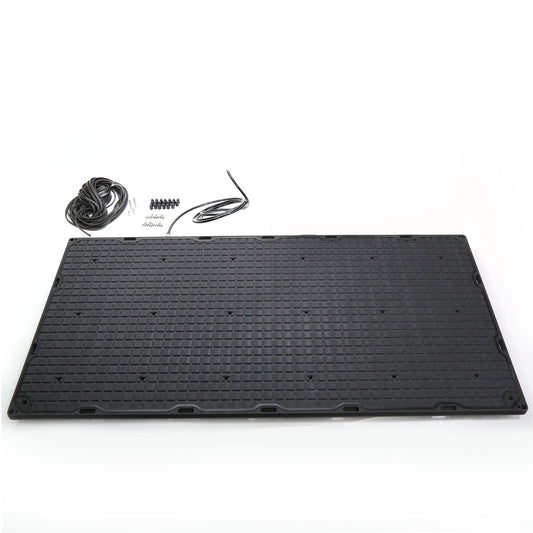

AirWeights Table 24x48
Regular price $795.00 USDRegular priceUnit price / per -

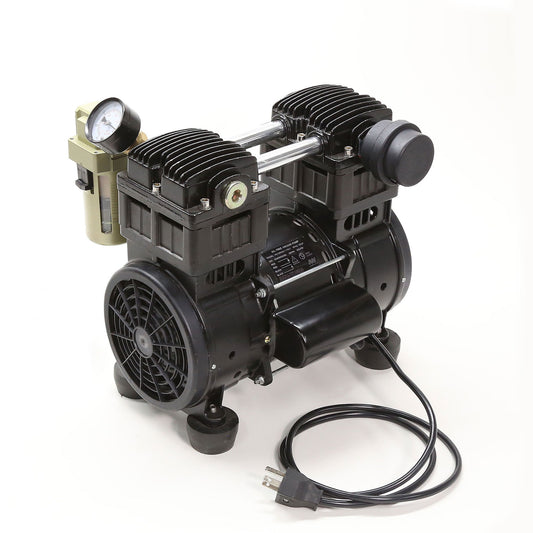

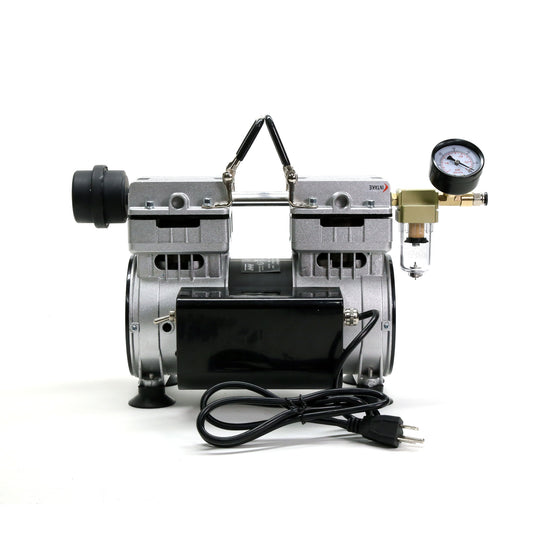

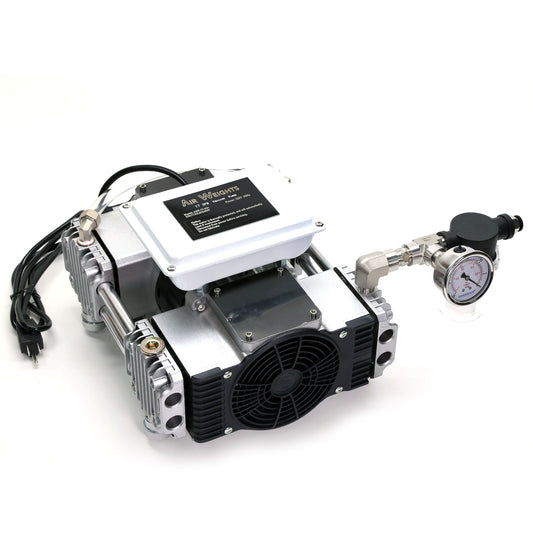

AirWeights Vacuum Pump - 17 CFM
Regular price $1,495.00 USDRegular priceUnit price / per$1,595.00 USDSale price $1,495.00 USDSale
